| 品牌 | Diodes汽车AEC-Q101 BAT54SQ-13 BAT54SQ | 批号 | + |
| 封装 | BAT54SQ7F-BAT54SQ13F | 仓库 | 深圳 |
- BAT54SQ-F 200MA 30V
東澤電氣
+86 755 83682348
SURFACE MOUNT SCHOTTKY BARRIER DIODE
表面安装肖特基势垒二极管
肖特基二极管与整流器 Schottky Diode
寿命周期:
新产品: 此制造商的新产品。
数据表:

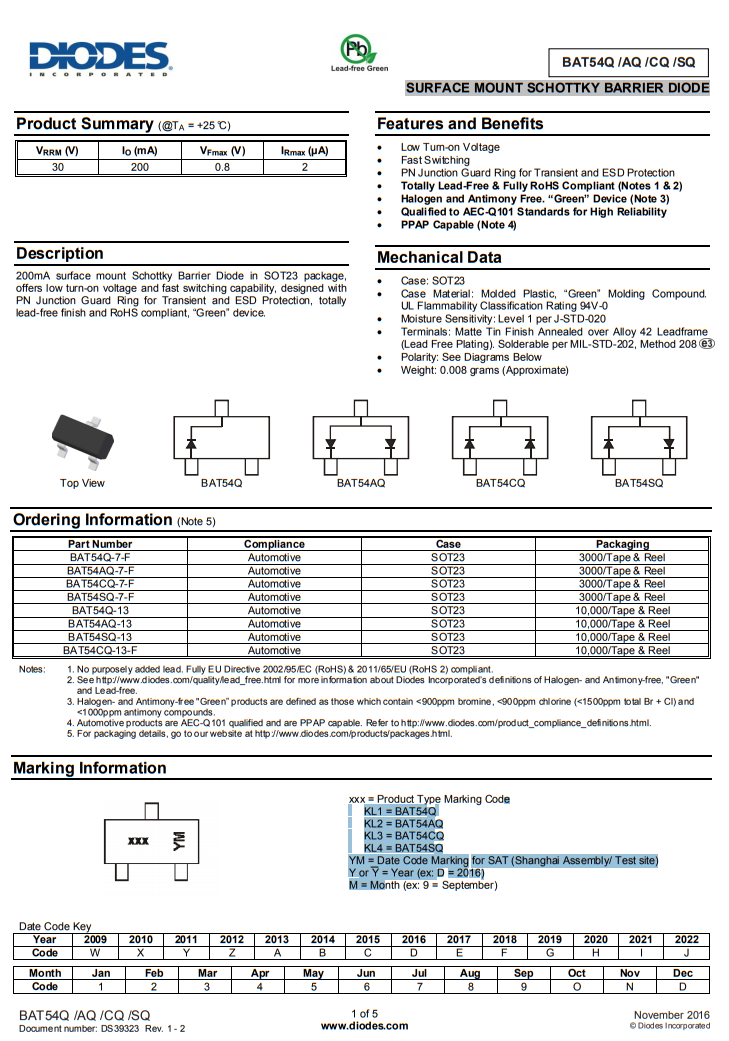

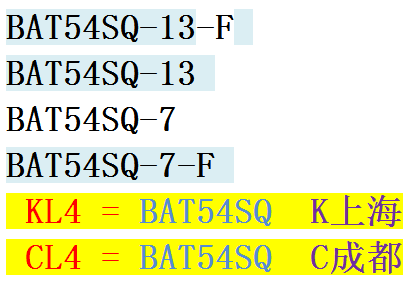

BAT54SQ-13-F
BAT54SQ-13
BAT54SQ-7
BAT54SQ-7-F
KL4 = BAT54SQ K上海
CL4 = BAT54SQ C成都
肖特基二极管与整流器 Schottky Diode SOT23 T&R 3K
寿命周期:
Mouser 的新产品
数据表:

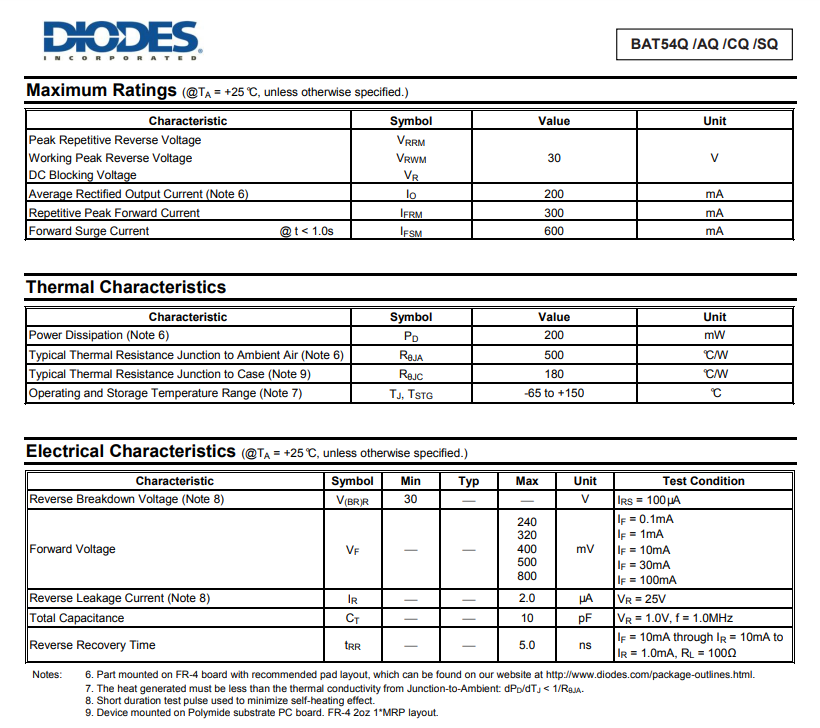

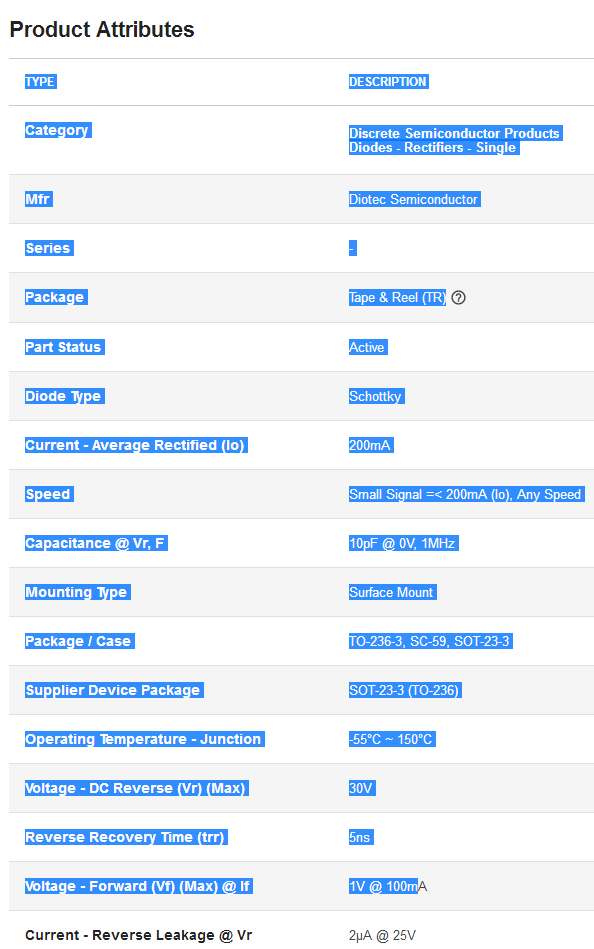

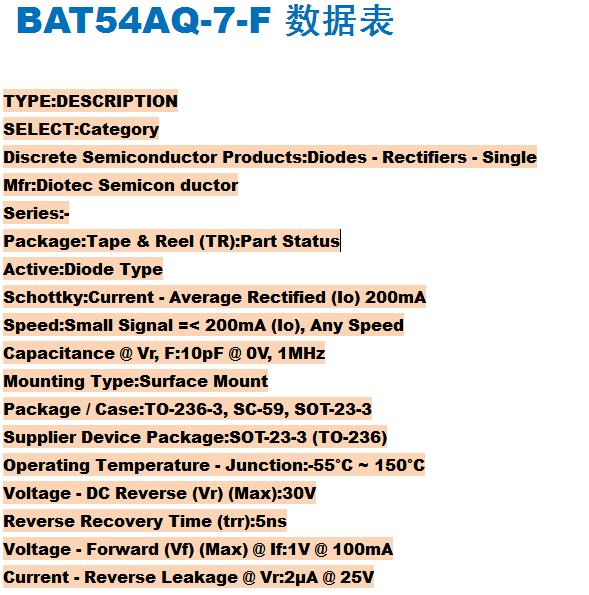

TYPE:DESCRIPTION
SELECT:Category
Discrete Semiconductor Products:Diodes - Rectifiers - Single
Mfr:Diotec Semicon ductor
Series:-
Package:Tape & Reel (TR):Part Status
Active:Diode Type
Schottky:Current - Average Rectified (Io) 200mA
Speed:Small Signal =< 200mA (Io), Any Speed
Capacitance @ Vr, F:10pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23-3 (TO-236)
Operating Temperature - Junction:-55°C ~ 150°C
Voltage - DC Reverse (Vr) (Max):30V
Reverse Recovery Time (trr):5ns
Voltage - Forward (Vf) (Max) @ If:1V @ 100mA
Current - Reverse Leakage @ Vr:2μA @ 25V

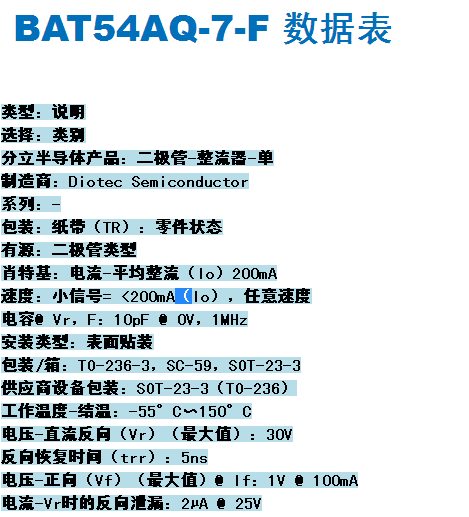

类型：说明
选择：类别
分立半导体产品：二极管-整流器-单
制造商：Diotec Semiconductor
系列：-
包装：纸带（TR）：零件状态
有源：二极管类型
肖特基：电流-平均整流（Io）200mA
速度：小信号= <200mA（Io），任意速度
电容@ Vr，F：10pF @ 0V，1MHz
安装类型：表面贴装
包装/箱：TO-236-3，SC-59，SOT-23-3
供应商设备包装：SOT-23-3（TO-236）
工作温度-结温：-55°C?150°C
电压-直流反向（Vr）（最大值）：30V
反向恢复时间（trr）：5ns
电压-正向（Vf）（最大值）@ If：1V @ 100mA
电流-Vr时的反向泄漏：2μA @ 25V

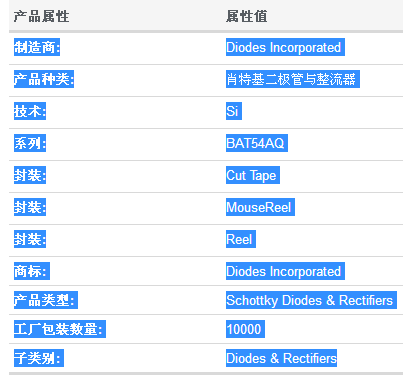

CL2 = BAT54AQ C成都
KL2 = BAT54AQ K上海
CL2 = BAT54AQ C成都
KL2 = BAT54AQ K上海
BAT54AQ-13-F
BAT54AQ-13
BAT54AQ-7
BAT54AQ-7-F

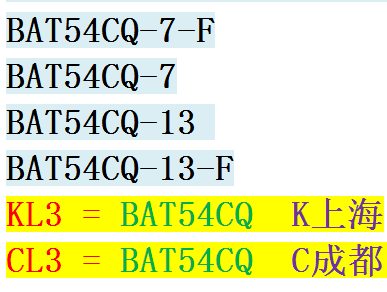

BAT54CQ-7-F
BAT54CQ-7
BAT54CQ-13
BAT54CQ-13-F
KL3 = BAT54CQ K上海
CL3 = BAT54CQ C成都

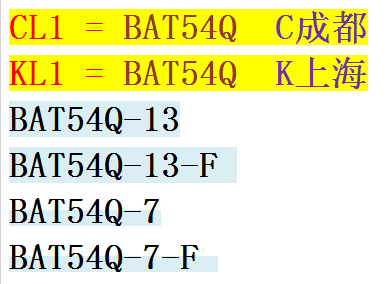

CL1 = BAT54Q C成都
KL1 = BAT54Q K上海
BAT54Q-13
BAT54Q-13-F
BAT54Q-7
BAT54Q-7-F
KL1 = BAT54Q K上海
KL2 = BAT54AQ
KL3 = BAT54CQ
KL4 = BAT54SQ
CL1 = BAT54Q C成都
CL2 = BAT54AQ
CL3 = BAT54CQ
CL4 = BAT54SQ

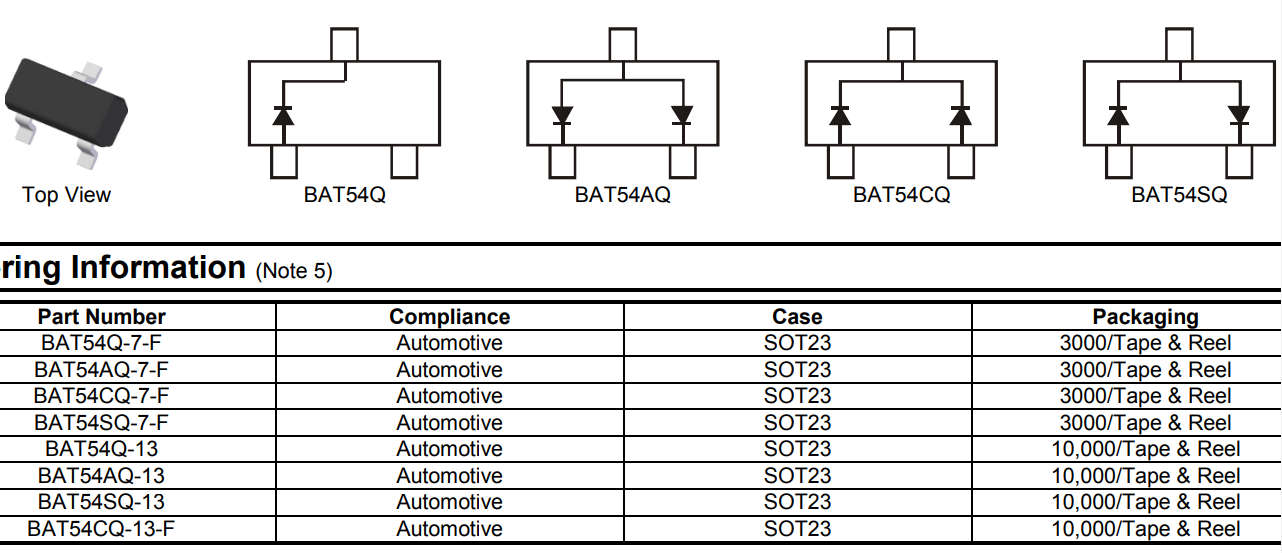

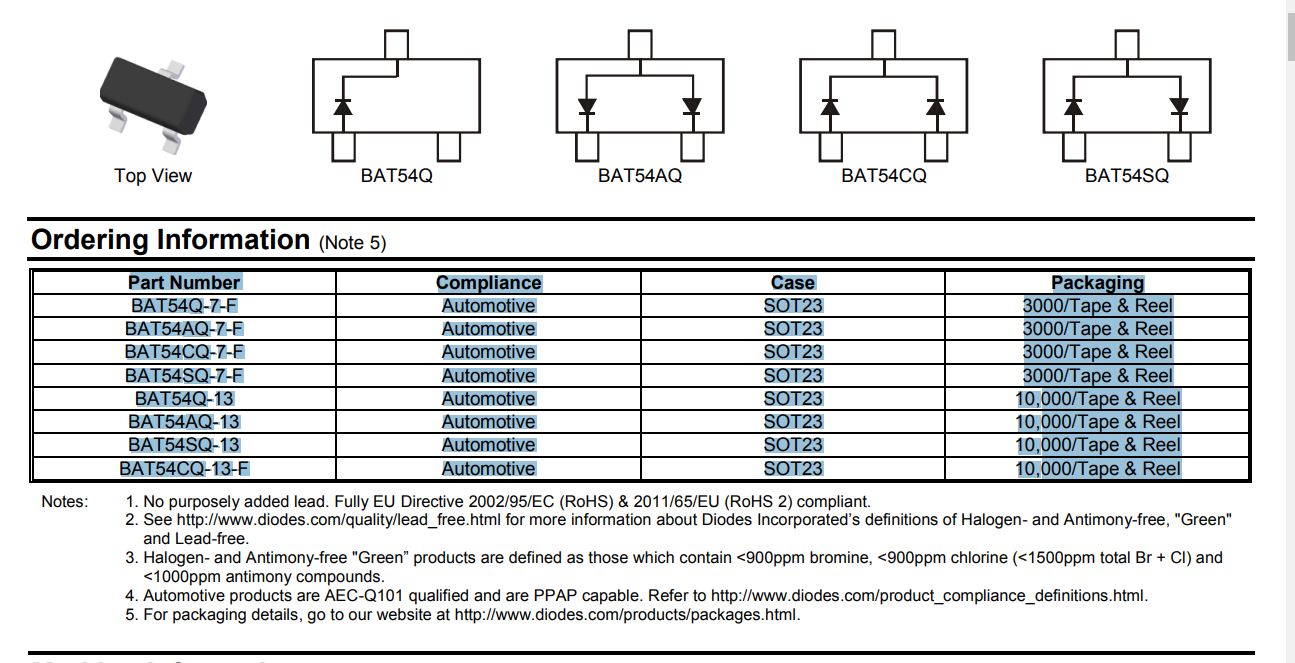

Ordering Information (Note 5)
Part Number Compliance Case Packaging
BAT54Q-7-F Automotive SOT23 3000/Tape & Reel
BAT54AQ-7-F Automotive SOT23 3000/Tape & Reel
BAT54CQ-7-F Automotive SOT23 3000/Tape & Reel
BAT54SQ-7-F Automotive SOT23 3000/Tape & Reel
BAT54Q-13 Automotive SOT23 10,000/Tape & Reel
BAT54AQ-13 Automotive SOT23 10,000/Tape & Reel
BAT54SQ-13 Automotive SOT23 10,000/Tape & Reel
BAT54CQ-13-F Automotive SOT23 10,000/Tape & Reel
Ordering Information (Note 5)
Part Number Compliance Case Packaging
BAT54Q-7-F Automotive SOT23 3000/Tape & Reel
BAT54AQ-7-F Automotive SOT23 3000/Tape & Reel
BAT54CQ-7-F Automotive SOT23 3000/Tape & Reel
BAT54SQ-7-F Automotive SOT23 3000/Tape & Reel
BAT54Q-13 Automotive SOT23 10,000/Tape & Reel
BAT54AQ-13 Automotive SOT23 10,000/Tape & Reel
BAT54SQ-13 Automotive SOT23 10,000/Tape & Reel
BAT54CQ-13-F Automotive SOT23 10,000/Tape & Reel

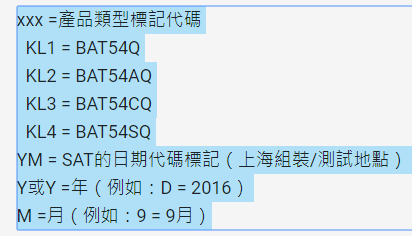

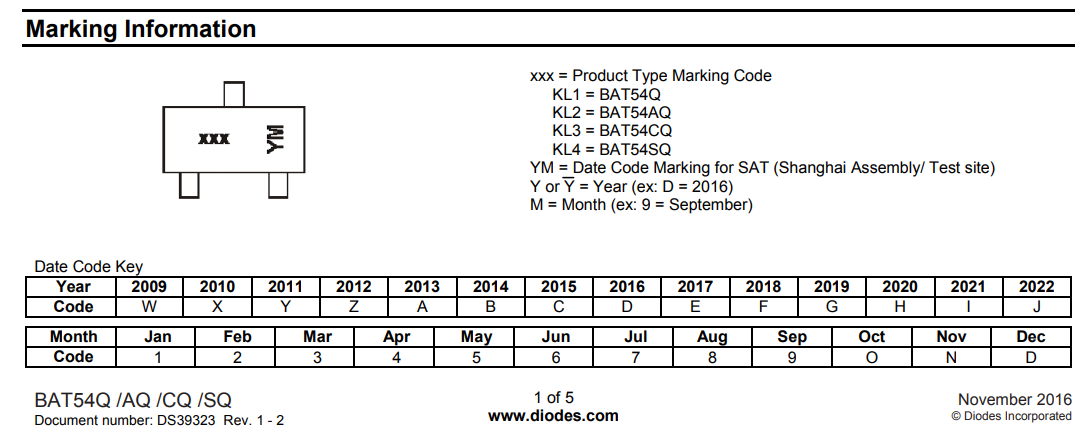

xxx = Product 產品類型Type Marking標記 代碼Code

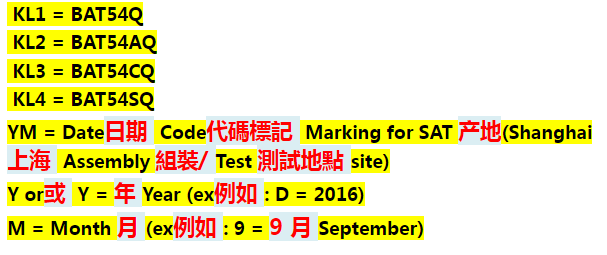

KL1 = BAT54Q
KL2 = BAT54AQ
KL3 = BAT54CQ
KL4 = BAT54SQ
YM = Date日期 Code代碼標記 Marking for SAT 产地(Shanghai上海 Assembly 組裝/Test 測試地點site)
Y or或 Y = 年Year (ex例如: D = 2016)
M = Month 月(ex例如: 9 = 9月September)
注意：1.沒有故意添加的鉛。 完全符合歐盟指令2002/95 / EC（RoHS）和2011/65 / EU（RoHS 2）。
2.有關Diodes Incorporated對“無鹵無銻”的“綠色”定義的更多信息，請參見http://www.diodes.com/quality/lead_free.html。
和無鉛。
3.不含鹵素和銻的“綠色”產品定義為包含<900ppm溴，<900ppm氯（<1500ppm總Br + Cl）和
<1000ppm銻化合物。
4.汽車產品通過AEC-Q101認證，並具有PPAP功能。 請參閱http://www.diodes.com/product_compliance_definitions.html。
5.有關包裝的詳細信息，請訪問我們的網站http://www.diodes.com/products/packages.html。

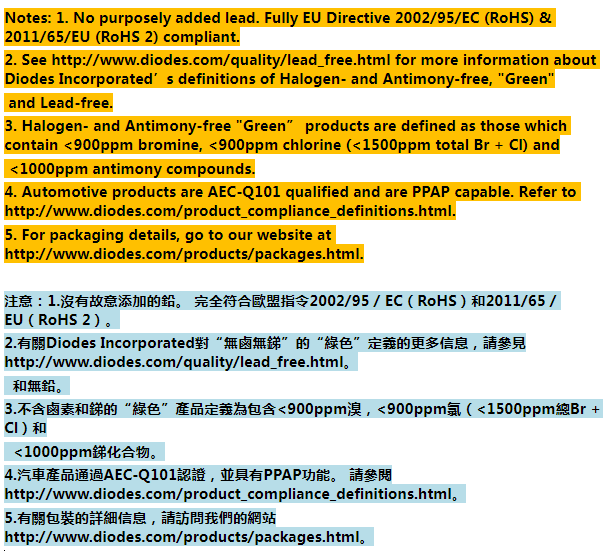

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

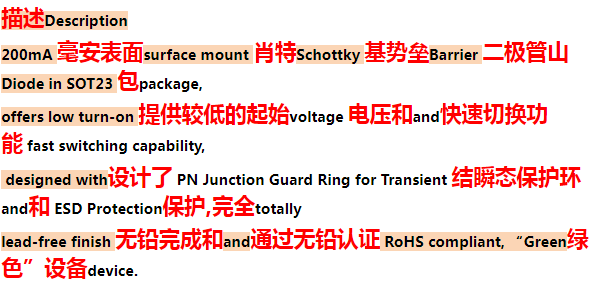

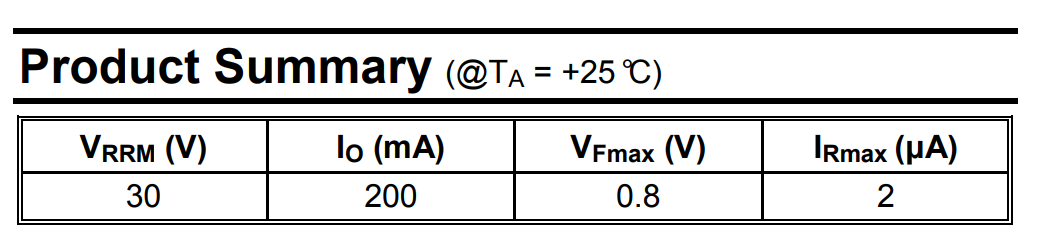

描述Description
200mA 毫安表面surface mount 肖特Schottky 基势垒Barrier 二极管山Diode in SOT23 包package,
offers low turn-on 提供较低的起始voltage 电压和and快速切换功能 fast switching capability,
designed with设计了 PN Junction Guard Ring for Transient 结瞬态保护环and和 ESD Protection保护,完全totally
lead-free finish 无铅完成和and通过无铅认证 RoHS compliant, “Green绿色”设备device.

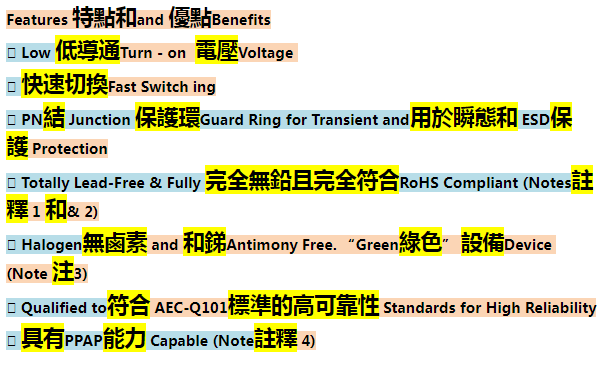

Features 特點和and 優點Benefits
? Low 低導通Turn - on 電壓Voltage
? 快速切換Fast Switch ing
? PN結 Junction 保護環Guard Ring for Transient and用於瞬態和 ESD保護 Protection
? Totally Lead-Free & Fully 完全無鉛且完全符合RoHS Compliant (Notes註釋 1 和& 2)
? Halogen無鹵素 and 和銻Antimony Free. “Green綠色” 設備Device (Note 注3)
? Qualified to符合 AEC-Q101標準的高可靠性 Standards for High Reliability
? 具有PPAP能力 Capable (Note註釋 4)

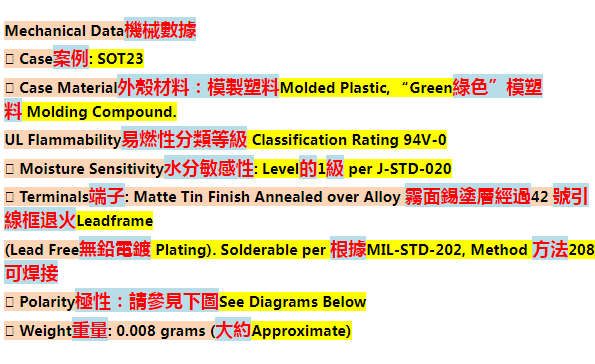

Mechanical Data機械數據
? Case案例: SOT23
? Case Material外殼材料：模製塑料Molded Plastic, “Green綠色”模塑料 Molding Compound.
UL Flammability易燃性分類等級 Classification Rating 94V-0
? Moisture Sensitivity水分敏感性: Level的1級 per J-STD-020
? Terminals端子: Matte Tin Finish Annealed over Alloy 霧面錫塗層經過42 號引線框退火Leadframe
(Lead Free無鉛電鍍 Plating). Solderable per 根據MIL-STD-202, Method 方法208可焊接

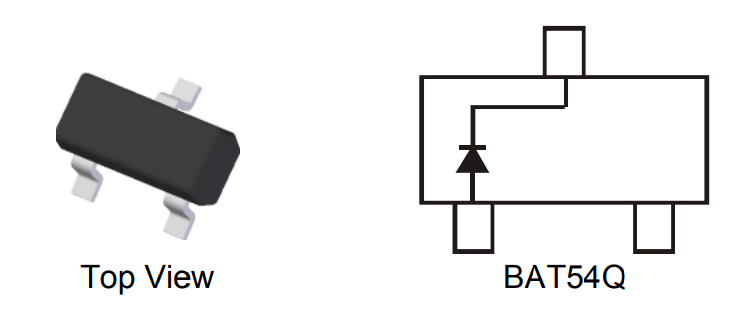

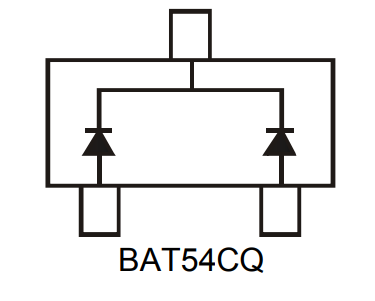

? Polarity極性：請參見下圖See Diagrams Below
? Weight重量: 0.008 grams (大約Approximate)
