Chip Ferrite Bead
日本村田公司标准规范(AEC-Q200)
Murata Standard Reference Specification [AEC-Q200]
BLM31PG330SN1B
BLM31PG330SN1L
BLM31PG500SN1B
BLM31PG500SN1L
BLM31PG391SN1B
BLM31PG391SN1L
BLM31PG601SN1L
BLM31PG601SN1B
BLM31PG121SN1B
BLM31PG121SN1L
BLM31SN500SN1L
BLM31SN500SN1B
=====================================
MURBLM31P121SGPTM00-03
BLM31PG330SH1L
BLM31PG330SH1B
BLM31PG500SH1L
BLM31PG500SH1B
BLM31PG121SH1L
BLM31PG121SH1B
BLM31PG391SH1L
BLM31PG391SH1B
BLM31PG601SH1L
BLM31PG601SH1B
BLM31SN500SH1L
BLM31SN500SH1B
BLM31AJ601SH1L
BLM31AJ601SH1B

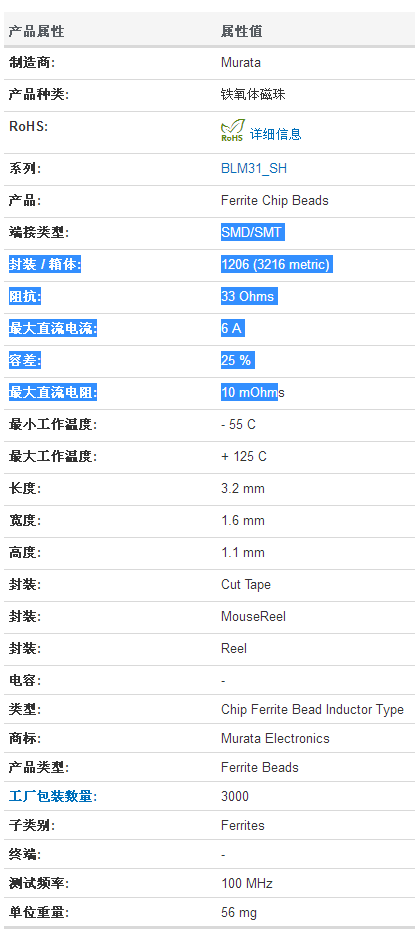

产品属性 属性值 搜索类似
制造商: Murata
产品种类: 铁氧体磁珠
RoHS: 详细信息
系列: BLM31_SH
产品: Ferrite Chip Beads
端接类型: SMD/SMT
封装 / 箱体: 1206 (3216 metric)
阻抗: 33 Ohms
最大直流电流: 6 A
容差: 25 %
最大直流电阻: 10 mOhms
最小工作温度: - 55 C
最大工作温度: + 125 C
长度: 3.2 mm
宽度: 1.6 mm
高度: 1.1 mm
封装: Cut Tape
封装: MouseReel
封装: Reel
电容: -
类型: Chip Ferrite Bead Inductor Type
商标: Murata Electronics
产品类型: Ferrite Beads
工厂包装数量: 3000
子类别: Ferrites
终端: -
测试频率: 100 MHz
单位重量: 56 mg
BLM31PG121SN1
BLM31PG100SN1L
BLM31P391SN1D
BLM31P330SGPTM
BLM31PG751SN1L BLM31P330SGPTM00-03
BLM31PG750SN1L
BLM31PG601SN1B
BLM31PG600SN1B
BLM31PG391SH1B
BLM31PG331SN1B
BLM31PG500SN1D
BLM31PG500SN1
BLM31PG330SN1L
BLM31PG330SN1B
BLM31PG202SN1L
BLM31PG152SN1L
BLM31PG122SN1L
BLM31PG121SN1L
BLM31PG391SN1K
BLM31PG391SN1D
BLM31PG391SN1B
BLM31P121SGPTM00-03
BLM31PG601SN1L
BLM31PG601SN1K
BLM31PG601SN1D
blm31pg500sn1l
BLM31PG500SN1L
BLM31PG331SN1L
BLM31PG500SN1K
BLM31PG500SN1B
BLM31PG330SN1L
BLM31PG330SN1L
BLM31PG330SN1L
BLM31PG330SN1K
BLM31PG330SN1K
BLM31PG330SN1D
BLM31PG330SN1D
BLM31PG121SN1K
BLM31PG121SN1D
BLM31PG121SN1B
BLM31PG391SN1L
blm31pg601sh1b
铁氧体磁珠 1206 120 OHM
数据表:

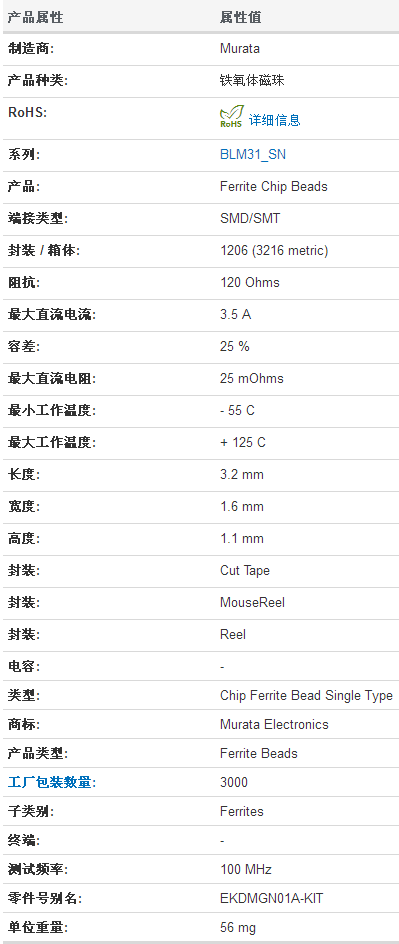

产品属性 属性值 搜索类似
制造商: Murata
产品种类: 铁氧体磁珠
RoHS: 详细信息
系列: BLM31_SN
产品: Ferrite Chip Beads
端接类型: SMD/SMT
封装 / 箱体: 1206 (3216 metric)
阻抗: 120 Ohms
最大直流电流: 3.5 A
容差: 25 %
最大直流电阻: 25 mOhms
最小工作温度: - 55 C
最大工作温度: + 125 C
长度: 3.2 mm
宽度: 1.6 mm
高度: 1.1 mm
封装: Cut Tape
封装: MouseReel
封装: Reel
电容: -
类型: Chip Ferrite Bead Single Type
商标: Murata Electronics
产品类型: Ferrite Beads
工厂包装数量: 3000
子类别: Ferrites
终端: -
测试频率: 100 MHz
零件号别名: EKDMGN01A-KIT
单位重量: 56 mg

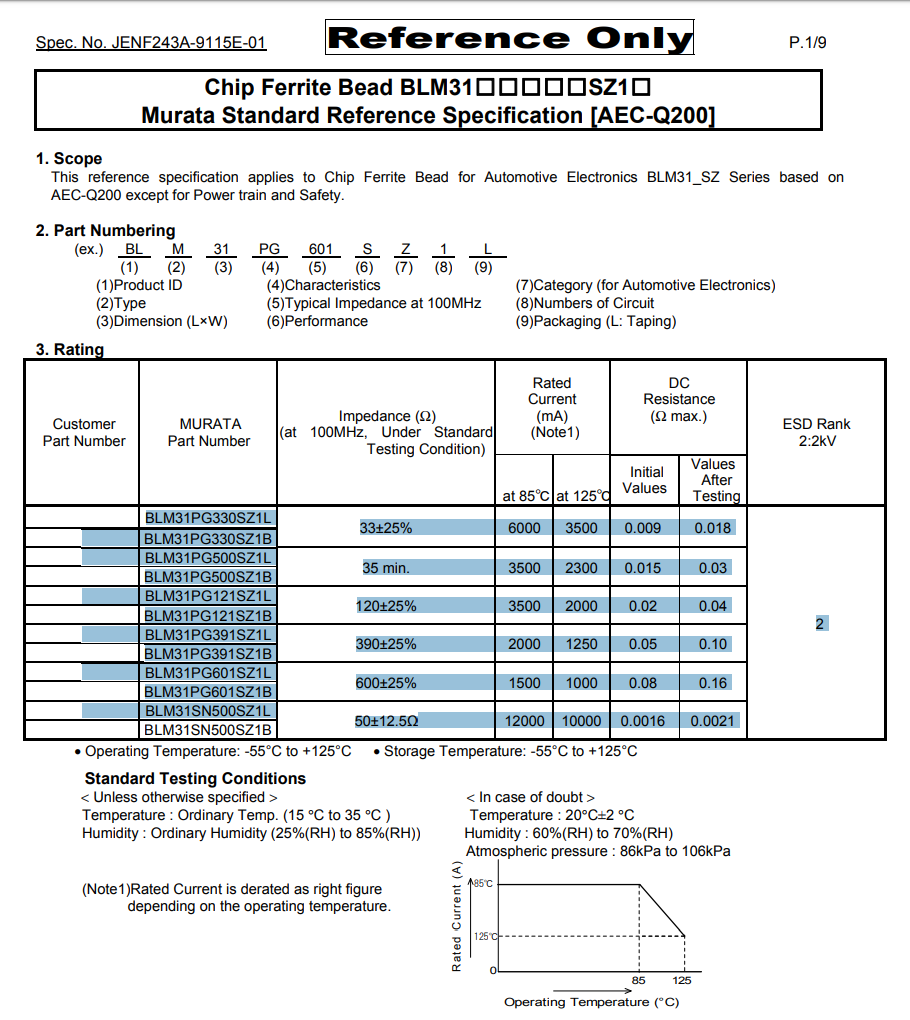

1.Scope范围
This reference specification applies to Chip Ferrite Bead
这个引用规范适用于
for Automotive Electronics
为汽车电子芯片铁氧体磁珠
BLM31_SZ Series based on
BLM31_SZ系列的基础上
EC-Q200除了力量训练和安全
AEC-Q200 except for Power train and Safety
BLM31PG330SZ1L 6A
BLM31PG330SZ1B
BLM31PG500SZ1L
BLM31PG500SZ1B
BLM31PG121SZ1L 3.5A
BLM31PG121SZ1B
BLM31PG391SZ1L
BLM31PG391SZ1B
BLM31PG601SZ1L 1.5A
BLM31PG601SZ1B
BLM31SN500SZ1L
BLM31SN500SZ1B 12A
铁氧体磁珠 1206 50ohms 2300mA Auto Infotainment
数据表:

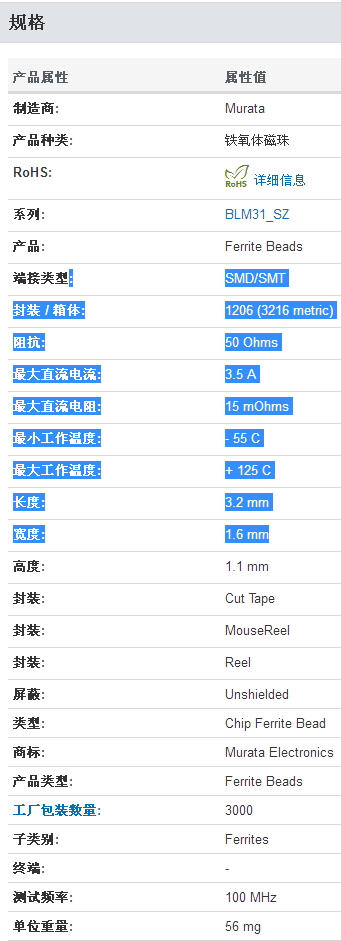

产品属性 属性值 搜索类似
制造商: Murata
产品种类: 铁氧体磁珠
RoHS: 详细信息
系列: BLM31_SZ
产品: Ferrite Beads
端接类型: SMD/SMT
封装 / 箱体: 1206 (3216 metric)
阻抗: 50 Ohms
最大直流电流: 3.5 A
最大直流电阻: 15 mOhms
最小工作温度: - 55 C
最大工作温度: + 125 C
长度: 3.2 mm
宽度: 1.6 mm
高度: 1.1 mm
封装: Cut Tape
封装: MouseReel
封装: Reel
屏蔽: Unshielded
类型: Chip Ferrite Bead
商标: Murata Electronics
产品类型: Ferrite Beads
工厂包装数量: 3000
子类别: Ferrites
终端: -
测试频率: 100 MHz
单位重量: 56 mg

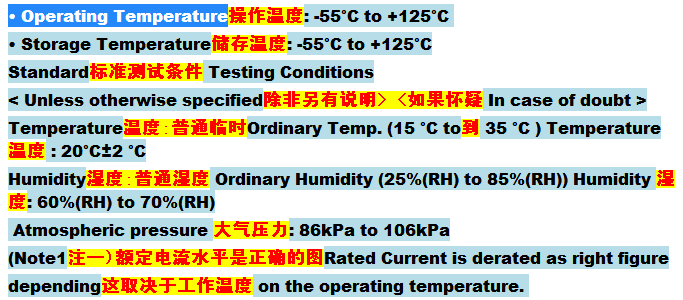

? Operating Temperature操作温度: -55°C to +125°C
? Storage Temperature储存温度: -55°C to +125°C
Standard标准测试条件 Testing Conditions
< Unless otherwise specified除非另有说明> <如果怀疑 In case of doubt >
Temperature温度:普通临时Ordinary Temp. (15 °C to到 35 °C ) Temperature温度 : 20°C±2 °C
Humidity湿度:普通湿度 Ordinary Humidity (25%(RH) to 85%(RH)) Humidity 湿度: 60%(RH) to 70%(RH)
Atmospheric pressure 大气压力: 86kPa to 106kPa
(Note1注一)额定电流水平是正确的图Rated Current is derated as right figure
depending这取决于工作温度 on the operating temperature.
Spec规范. No. JENF243A-9115E-01 P.4/9
MURATA MFG.CO., LTD.
日本村田公司MFG.CO。有限公司
Reference 参考 Only

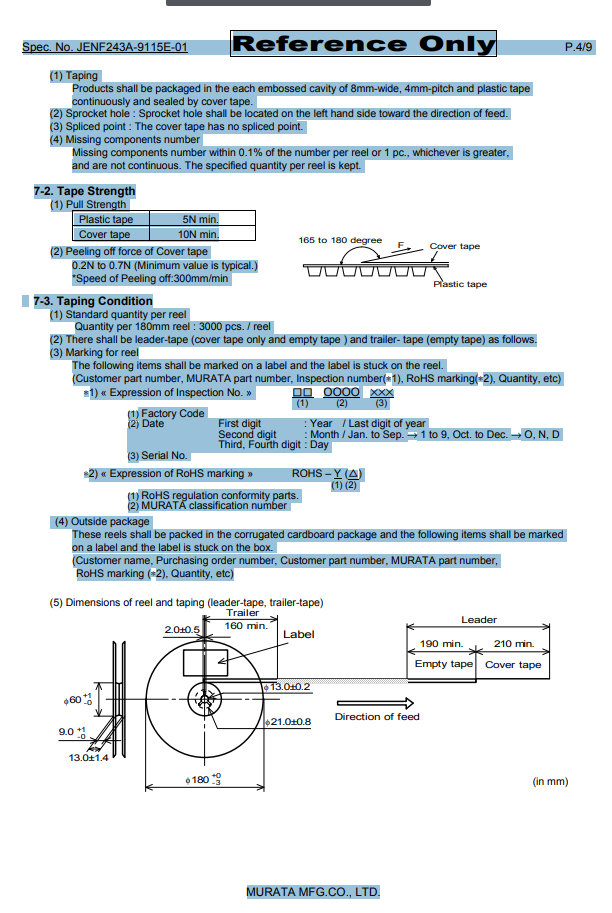

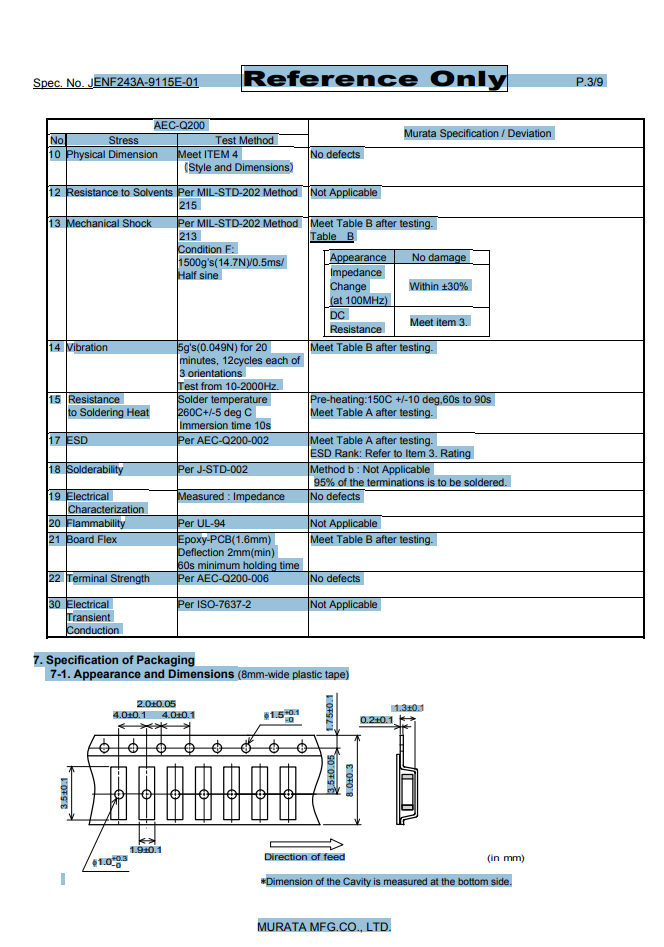

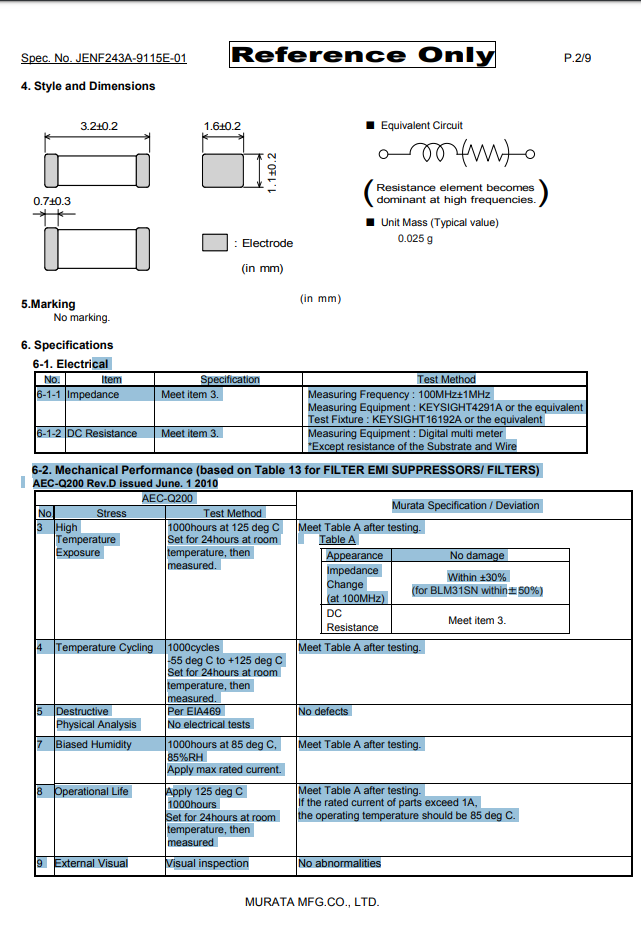

(1) 录制Taping
Products shall be packaged in the each embossed cavity of 8mm-wide,
产品应包装每个压花腔的8毫米宽,
4mm-pitch 球场and和塑料带 plastic tape
continuously不断,封面胶带密封 and sealed by cover tape.
(2)齿孔:定位孔应位于左手边向进给方向。
(2) Sprocket holeSprocket hole shall be located on the left hand side toward the direction of feed.
(3) Spliced point 拼接点:封面胶带没有拼接点The cover tape has no spliced point.
(4) Missing缺少组件数量 components number
Missing components number within缺少的组件数量在 0.1% of the number per每卷 reel 或or 1个 pc.,
whichever 哪个是更大的is greater,
and are not continuous并不是连续的。每卷保存指定的数量The specified quantity per reel is kept.
7-2. 胶带强度Tape Strength
(1) Pull 拉拔强度Strength
Plastic tape塑料带5N分钟min.
Cover tape盖带 10N 分钟min.
(2) Peeling 剥离力的磁带off force of Cover tape
0.2N to 0.7N (Minimum 最小值是典型)value is typical.)
下列事项
*Speed of Peeling 剥离速度off:300mm毫米/分钟min
7-3. Taping录制条件 Condition
(1) Standard标准数量 quantity per每卷 reel
Quantity数量 per 180mm毫米 reel盘 : 3000片 pcs. / 卷reel
(2) There shall be必有 leader-tape (cover tape only 只带和and空磁带 empty tape ) and和拖车 trailer- tape磁带(空磁带empty tape) as如下 follows.
(3) 卷标记Marking for reel
The following下列事项 items shall be marked 应当标明on一a个标签 label and和标签贴在卷 the label is stuck on the reel.
(Customer part number客户零件号, MURATA日本村田公司零件号 part number, Inspection检验数量 number(?1), RoHS 标记marking
?2), Quantity数量,等,etc)
?1) ? Expression检查 of Inspection表达 No. ? □□ OOOO ×××
(1) (2) (3)
(1) Factory Code
(2) Date First digit : Year / Last digit of year
Second digit : Month / Jan. to Sep. → 1 to 9, Oct. to Dec. → O, N, D
Third, Fourth digit : Day
(3) Serial No.
?2) ? Expression of RoHS marking ? ROHS – Y (△)
(1) (2)
(1) RoHS规定合格零件 regulation conformity parts.
(2) MURATA 日本村田公司的分类数classification number
(4) Outside外部包 package
These reels shall be packed in the corrugated cardboard package
这些卷的包装是用瓦楞纸板包
和and下列事项,应当标明the following items shall be marked
on a label 在一个标签和and 标签贴在the label is stuck盒子上 on the box.
(Customer客户名称 name, Purchasing 采购订单号、客户零件号order number,
日本村田公司的零件号码
Customer part number, MURATA part number,
RoHS标记 marking (?2), Quantity数量, 等etc)
