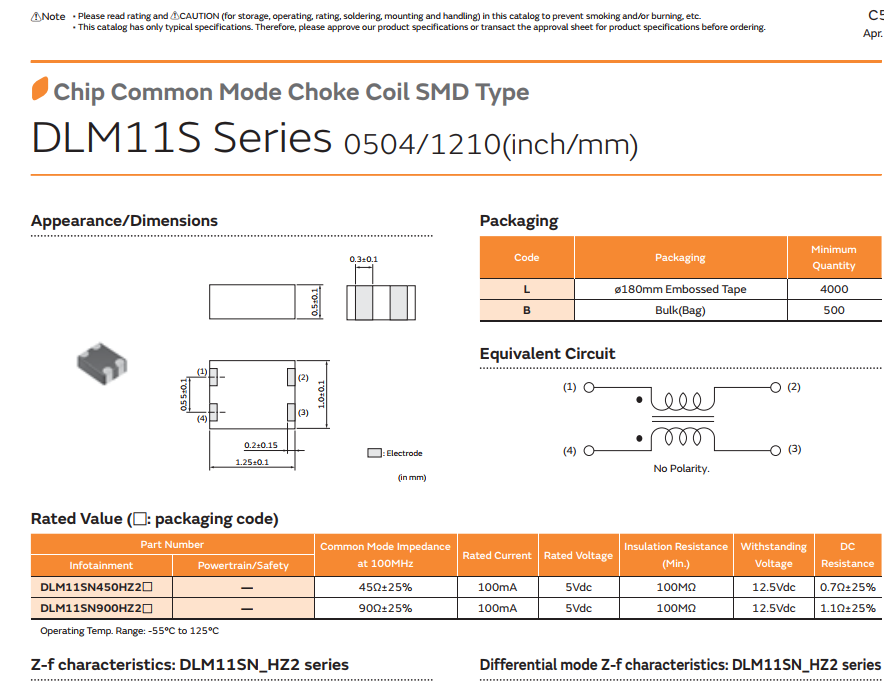

Chip Common Mode Choke Coil SMD Type

芯片共模扼流圈SMD类型

DLM11S Series 系列0504/1210(inch英寸/毫米mm)

DLM11SN450HZ2L

DLM11SN900HZ2L

DLM11SN450HZ2B — 45Ω±25% 100mA 5Vdc 100MΩ 12.5Vdc 0.7Ω±25%

DLM11SN900HZ2B — 90Ω±25% 100mA 5Vdc 100MΩ 12.5Vdc 1.1Ω±25%

================

Impedance Type Filters SMD Type

　　阻抗类型过滤器SMD类型

NFZ32BW_10 Series 1210/3225(inch/mm)

NFZ32BW3R6HZ10L

NFZ32BW7R4HZ10L

NFZ32BW9R0HZ10L

NFZ32BW150HZ10L

NFZ32BW210HZ10L

NFZ32BW320HZ10L

NFZ32BW420HZ10L

NFZ32BW700HZ10L

NFZ32BW111HZ10L

NFZ32BW151HZ10L

NFZ32BW221HZ10L

NFZ32BW291HZ10L

NFZ32BW451HZ10L

NFZ32BW621HZ10L

NFZ32BW881HZ10L

2000PCS/REEL

7500PCS/REEL

NFZ32BW3R6HZ10K — 3.6Ω±30% 2.55A 0.03Ω±20%

NFZ32BW7R4HZ10K — 7.4Ω±30% 2.05A 0.045Ω±20%

NFZ32BW9R0HZ10K — 9Ω±30% 1.75A 0.057Ω±20%

NFZ32BW150HZ10K — 15Ω±30% 1.6A 0.076Ω±20%

NFZ32BW210HZ10K — 21Ω±30% 1.2A 0.12Ω±20%

NFZ32BW320HZ10K — 32Ω±30% 1A 0.18Ω±20%

NFZ32BW420HZ10K — 42Ω±30% 850mA 0.24Ω±20%

NFZ32BW700HZ10K — 70Ω±30% 700mA 0.38Ω±20%

NFZ32BW111HZ10K — 110Ω±30% 520mA 0.57Ω±20%

NFZ32BW151HZ10K — 150Ω±30% 450mA 0.81Ω±20%

NFZ32BW221HZ10K — 220Ω±30% 390mA 1.15Ω±20%

NFZ32BW291HZ10K — 290Ω±30% 310mA 1.78Ω±20%

NFZ32BW451HZ10K — 450Ω±30% 275mA 2.28Ω±20%

NFZ32BW621HZ10K — 620Ω±30% 250mA 2.7Ω±20%

NFZ32BW881HZ10K — 880Ω±30% 200mA 4.38Ω±20%

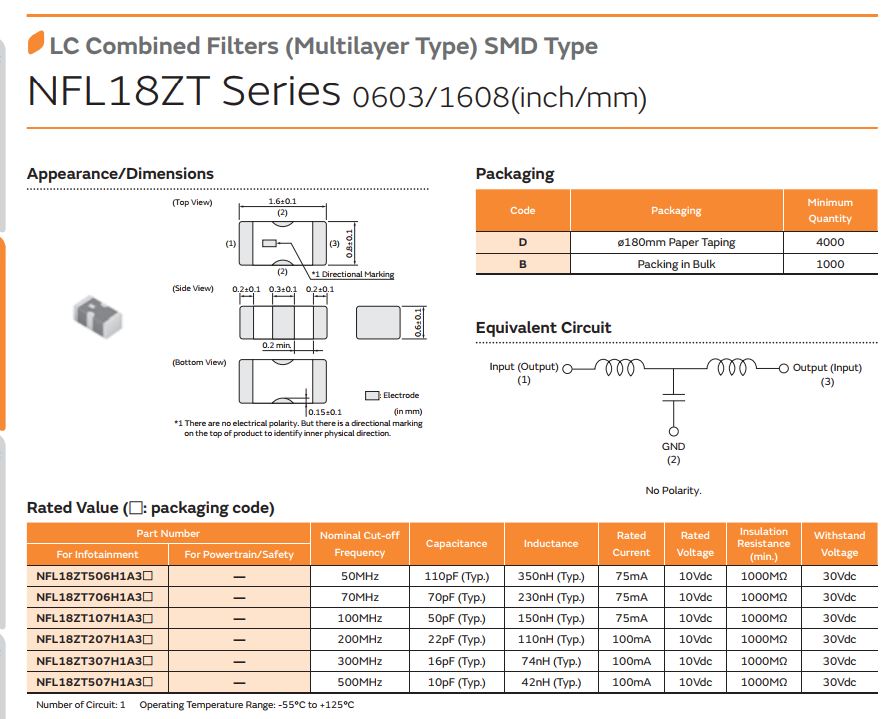

NFL18ZT506H1A3B

NFL18ZT706H1A3B

NFL18ZT107H1A3B

NFL18ZT207H1A3B

NFL18ZT307H1A3B

NFL18ZT507H1A3B

NFL18ZT506H1A3D — 50MHz 110pF (Typ.) 350nH (Typ.) 75mA 10Vdc 1000MΩ 30Vdc

NFL18ZT706H1A3D — 70MHz 70pF (Typ.) 230nH (Typ.) 75mA 10Vdc 1000MΩ 30Vdc

NFL18ZT107H1A3D — 100MHz 50pF (Typ.) 150nH (Typ.) 75mA 10Vdc 1000MΩ 30Vdc

NFL18ZT207H1A3D — 200MHz 22pF (Typ.) 110nH (Typ.) 100mA 10Vdc 1000MΩ 30Vdc

NFL18ZT307H1A3D — 300MHz 16pF (Typ.) 74nH (Typ.) 100mA 10Vdc 1000MΩ 30Vdc

NFL18ZT507H1A3D — 500MHz 10pF (Typ.) 42nH (Typ.) 100mA 10Vdc 1000MΩ 30Vdc

==============

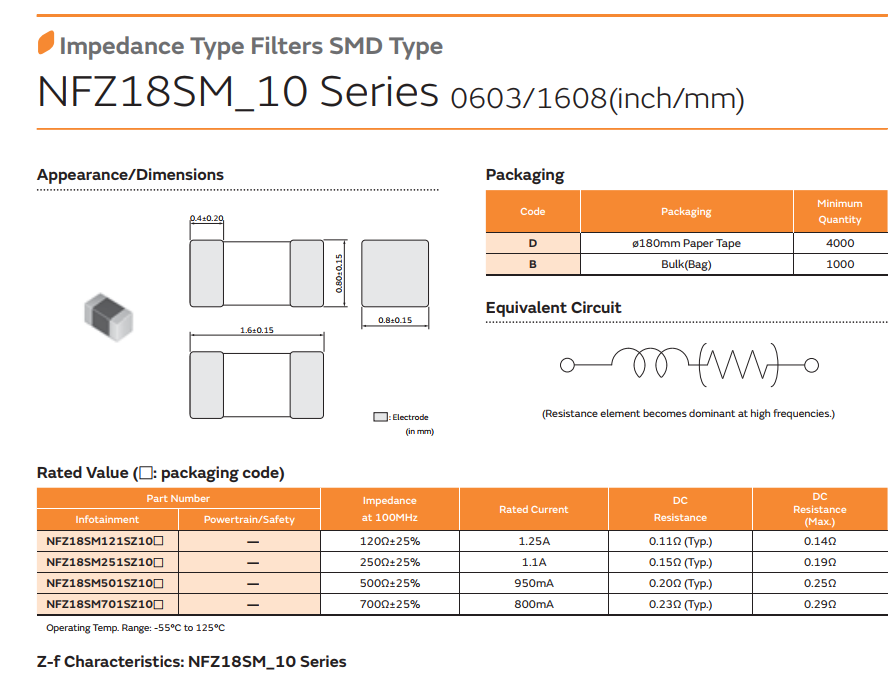

NFZ18SM701SN10D

NFZ18SM501SN10D

NFZ18SM251SN10D

NFZ18SM121SN10D

NFZ18SM701SN10B

NFZ18SM501SN10B

NFZ18SM251SN10B

NFZ18SM121SN10B

NFZ18SM121SZ10B

NFZ18SM251SZ10B

NFZ18SM501SZ10B

NFZ18SM701SZ10B

NFZ18SM121SZ10d — 120Ω±25% 1.25A 0.11Ω (Typ.) 0.14Ω

NFZ18SM251SZ10D — 250Ω±25% 1.1A 0.15Ω (Typ.) 0.19Ω

NFZ18SM501SZ10D — 500Ω±25% 950mA 0.20Ω (Typ.) 0.25Ω

NFZ18SM701SZ10D — 700Ω±25% 800mA 0.23Ω (Typ.) 0.29Ω
