2025年SMDB3/32V/SOT-23现货供应，厂商ST/意法 DB3 DB4/封装/批号+-深圳市福田区东泽电子商行

产品属性

品牌	ST/意法 DB3 DB4	批号	+
封装		仓库

交易说明：

双向可控硅 350MW BI-DIRECTIONAL TRIGGER DIODE

产品详情

DB3 DB4 SMDB3

東澤電氣

+86755 83682348

Diac Series:DB3/32V
DIAC DB3 32V 2A DO-35 CASE ST双向开关二极

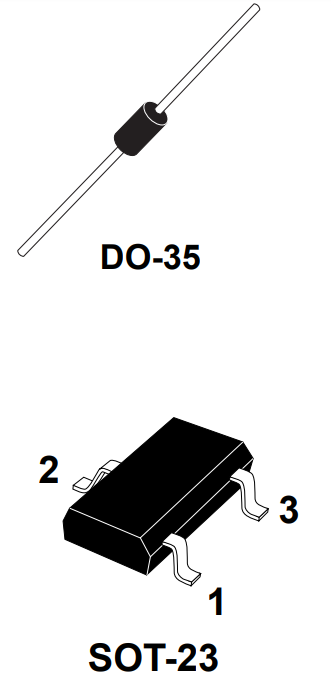

DB3/DO-35 DB4 SMDB3

SMDB3/32V1A SOT-23

STMic/ DB4/40V2A DO-35
DIAC DB3 32V 2A DO-35 CASE ST双向开关二极 SMDB3/32V1A SOT-23
http://blog.sina.com.cn/s/blog_136760af80102wtva.html

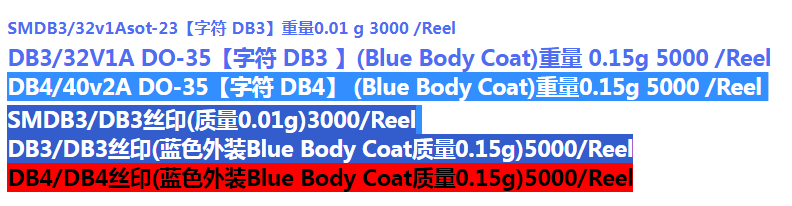

SMDB3/32v1Asot-23【字符 DB3】重量0.01 g 3000 /Reel

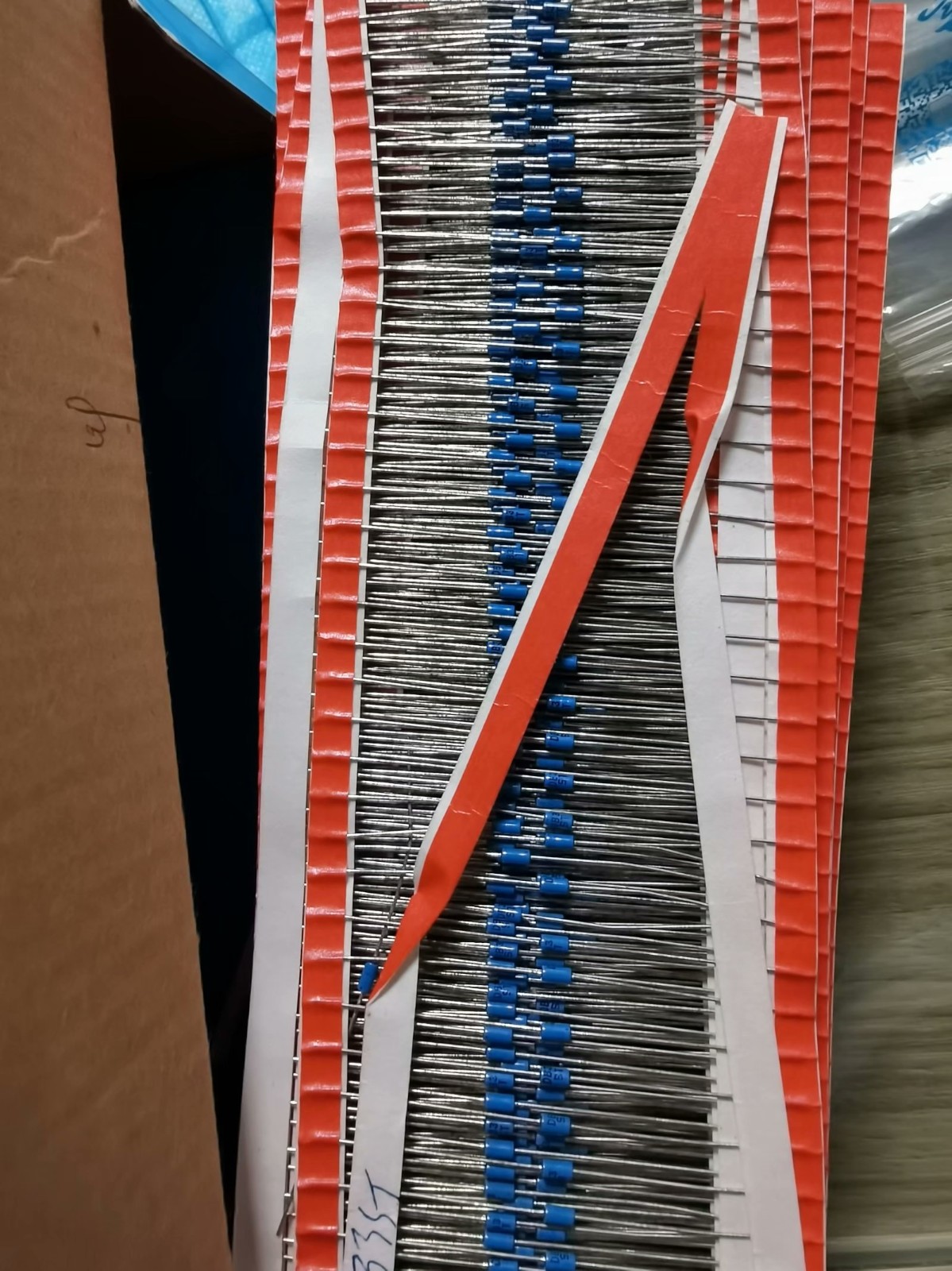

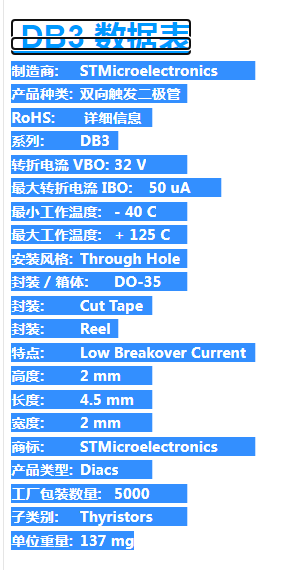

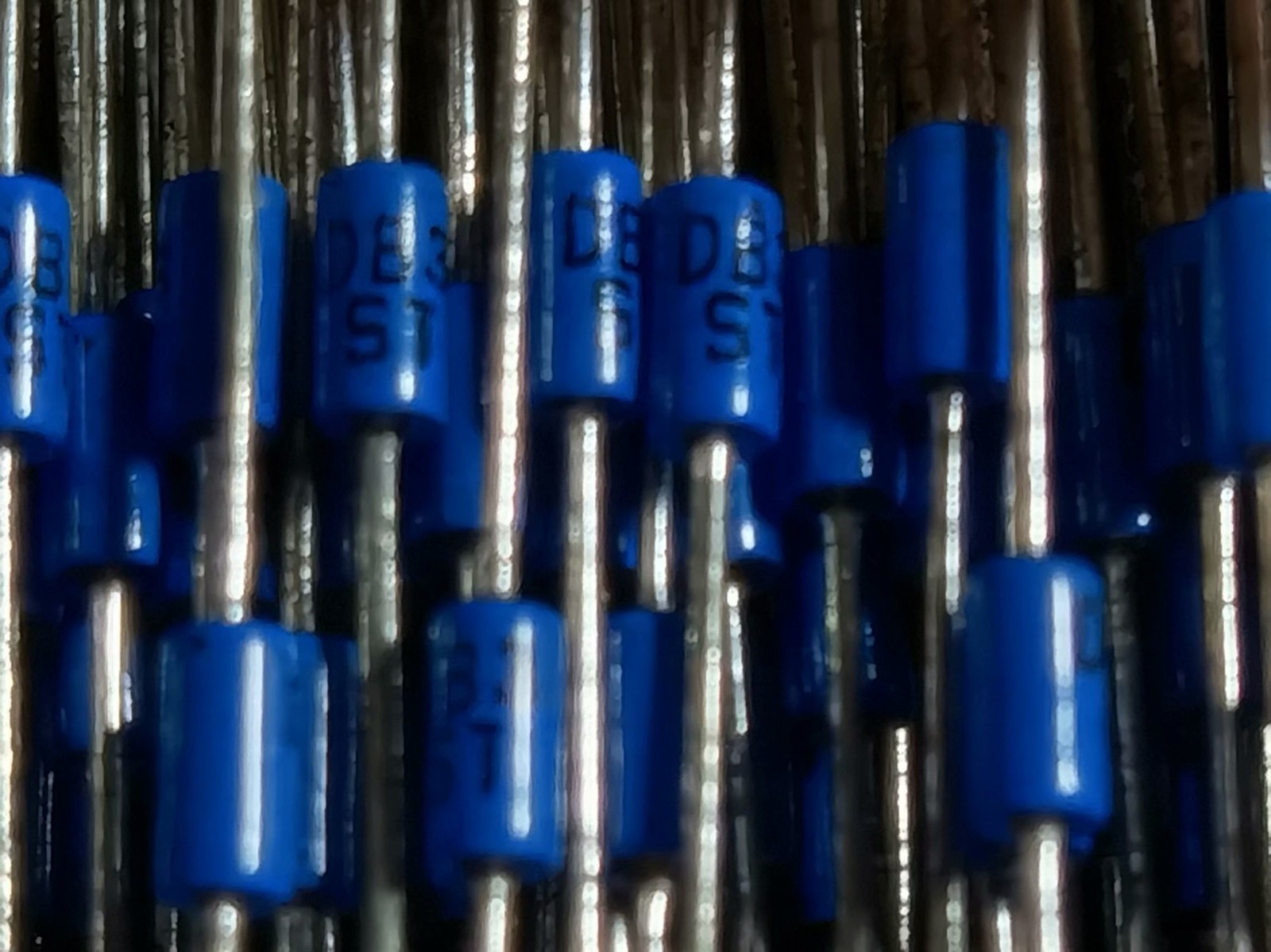

DB3/32V1A DO-35【字符 DB3 】(Blue Body Coat)重量 0.15g 5000 /Reel
DB4/40v2A DO-35【字符 DB4】 (Blue Body Coat)重量0.15g 5000 /Reel

SMDB3/DB3丝印(质量0.01g)3000/Reel

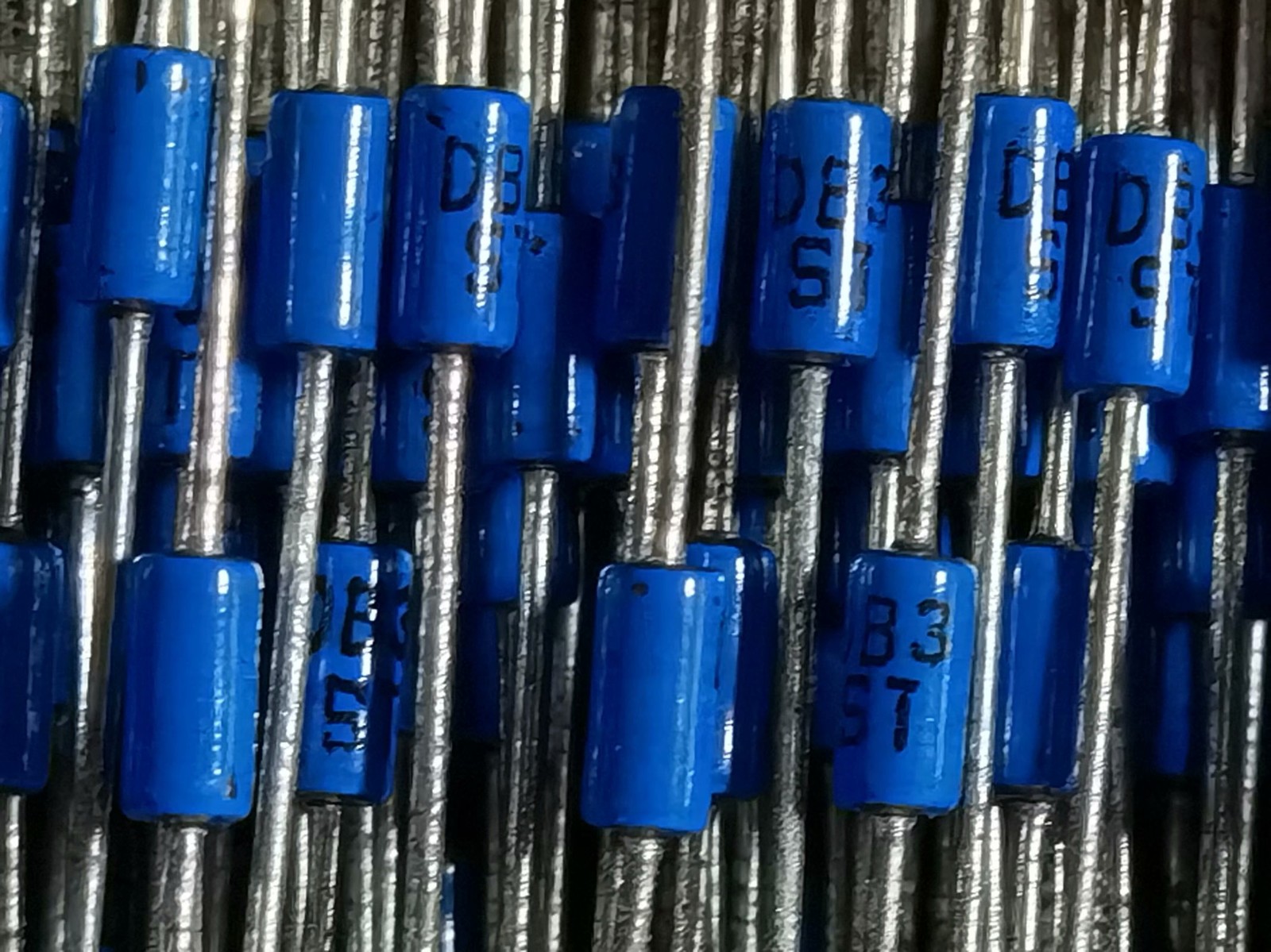

DB3/DB3丝印(蓝色外装Blue Body Coat质量0.15g)5000/Reel
DB4/DB4丝印(蓝色外装Blue Body Coat质量0.15g)5000/Reel

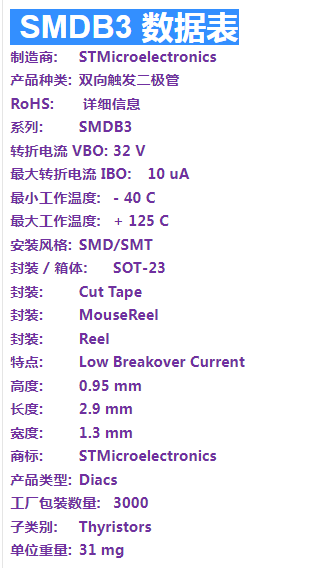

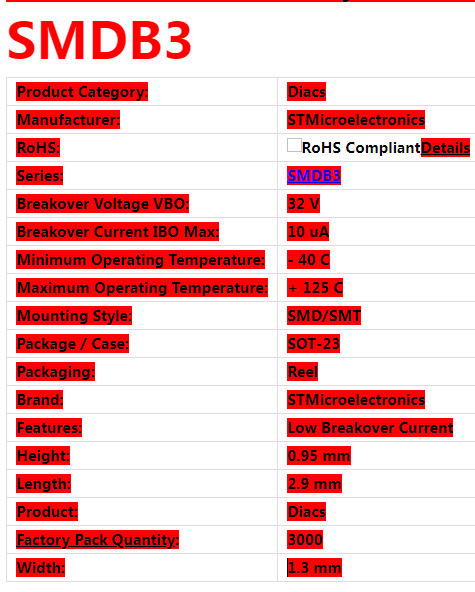

SMDB3

Product Category:	Diacs
Manufacturer:	STMicroelectronics
RoHS:	Details	?
Series:	SMDB3
Breakover Voltage VBO:	32 V
Breakover Current IBO Max:	10 uA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package / Case:	SOT-23
Packaging:	Reel
Brand:	STMicroelectronics	?
Features:	Low Breakover Current	?
Height:	0.95 mm	?
Length:	2.9 mm	?
Product:	Diacs	?
Factory Pack Quantity:	3000	?
Width:	1.3 mm	?

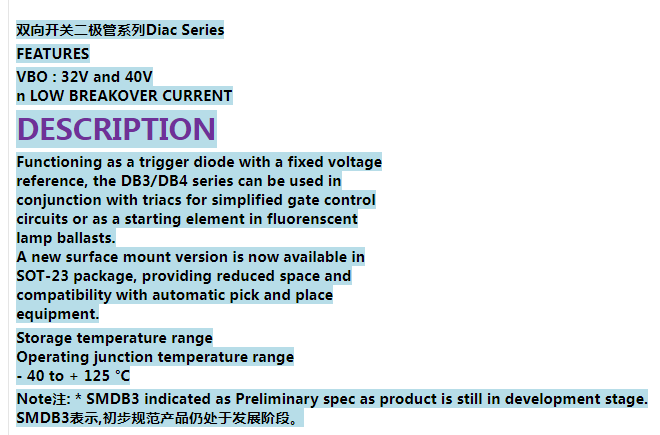

双向开关二极管系列Diac Series

FEATURES

VBO : 32V and 40V
n LOW BREAKOVER CURRENT

DESCRIPTION

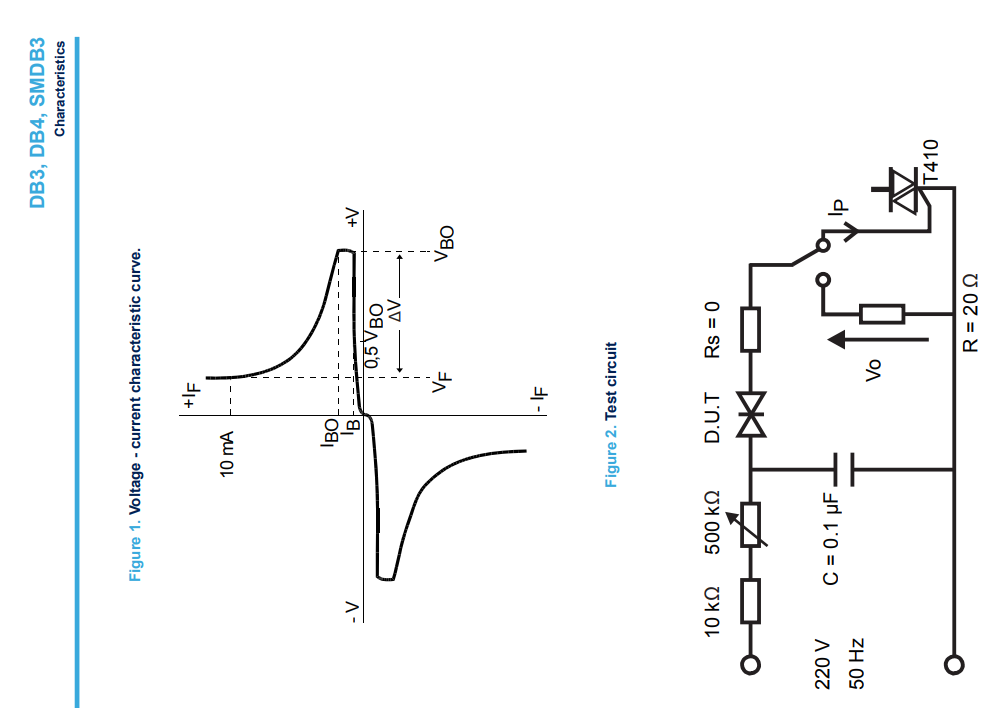

Functioning as a trigger diode with a fixed voltage
reference, the DB3/DB4 series can be used in
conjunction with triacs for simplified gate control
circuits or as a starting element in fluorenscent
lamp ballasts.
A new surface mount version is now available in
SOT-23 package, providing reduced space and
compatibility with automatic pick and place
equipment.

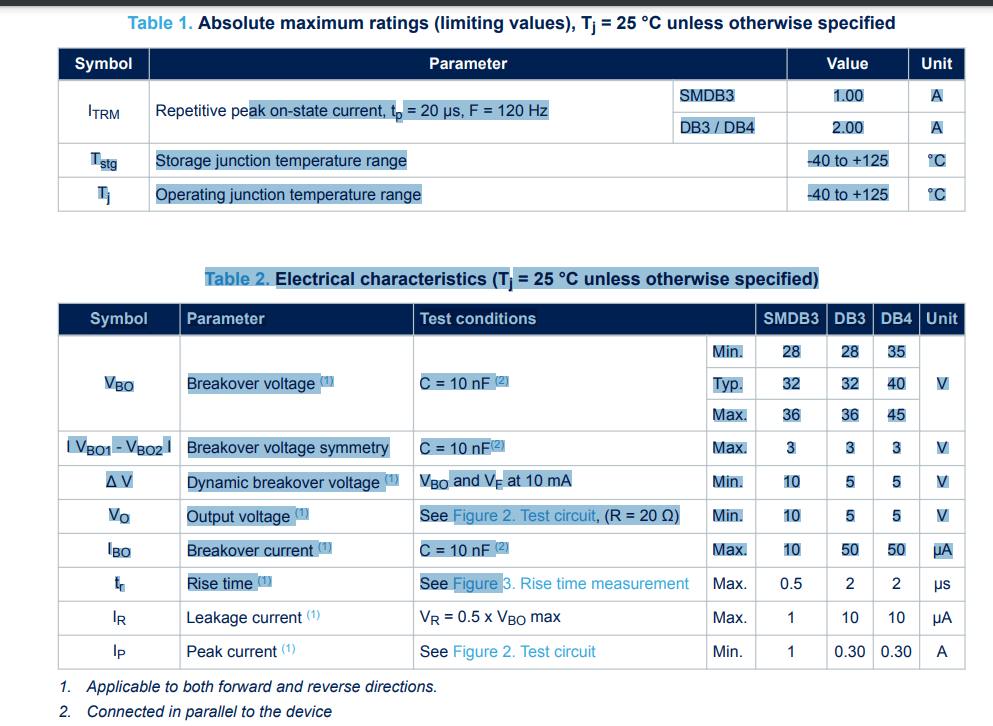

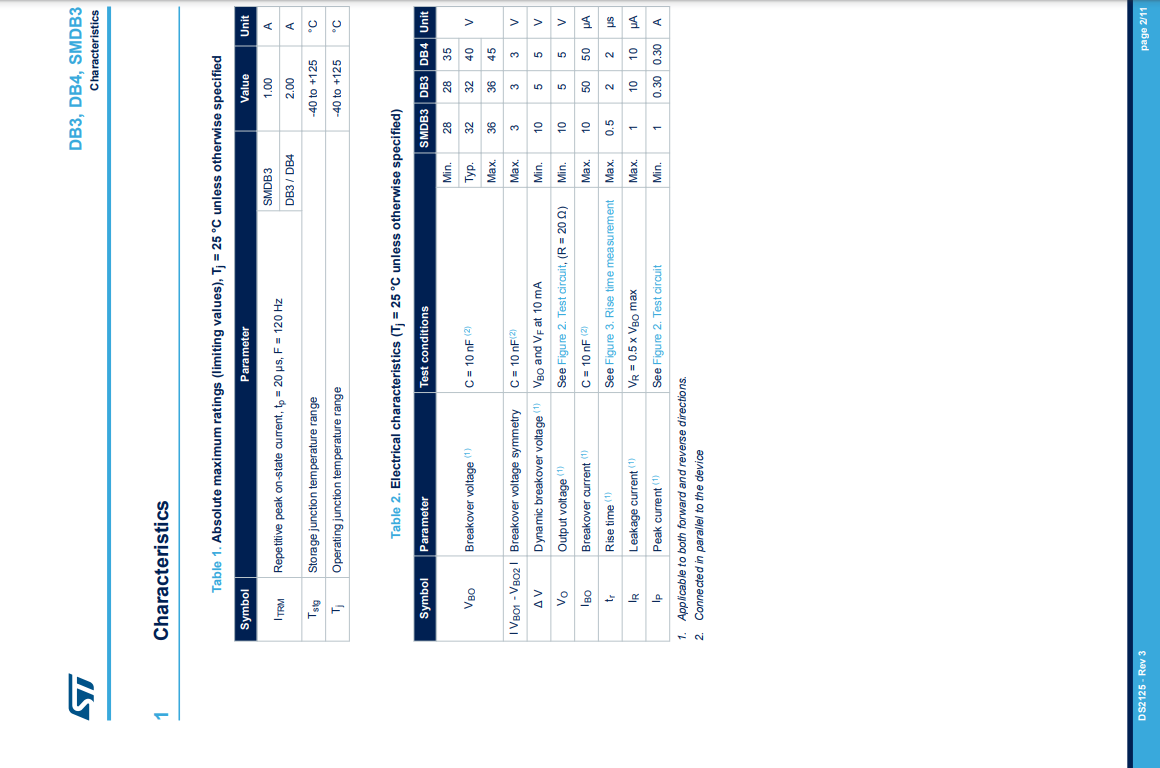

Storage temperature range
Operating junction temperature range
- 40 to + 125 °C

Note注: * SMDB3 indicated as Preliminary spec as product is still in development stage.
SMDB3表示,初步规范产品仍处于发展阶段。
