| 品牌 | SAMW三和 | 批号 | + |
| 封装 | TKP471M1AE11P2.5TK | 仓库 | 深圳 |
- 13C066
RD1C108M10016PA
TKP471M1AE11 P2.5
TKP221M1AD11-BPE25
TK8A60DASTA4
==========================

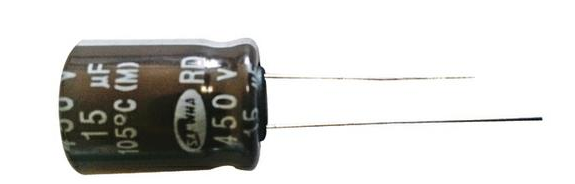

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
Standard series for general purpose
High CV value
Wide operating temperature range of -55 ~ +105 C
Complied to the RoHS directive
DRAWING

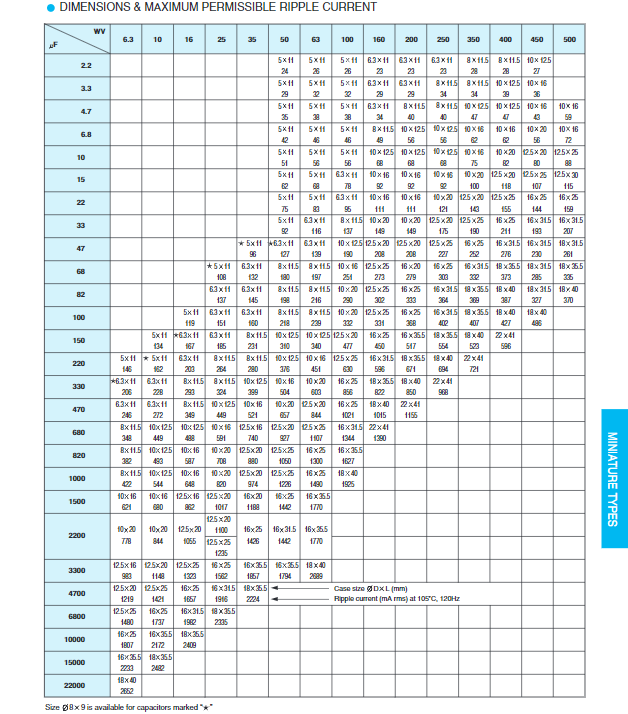

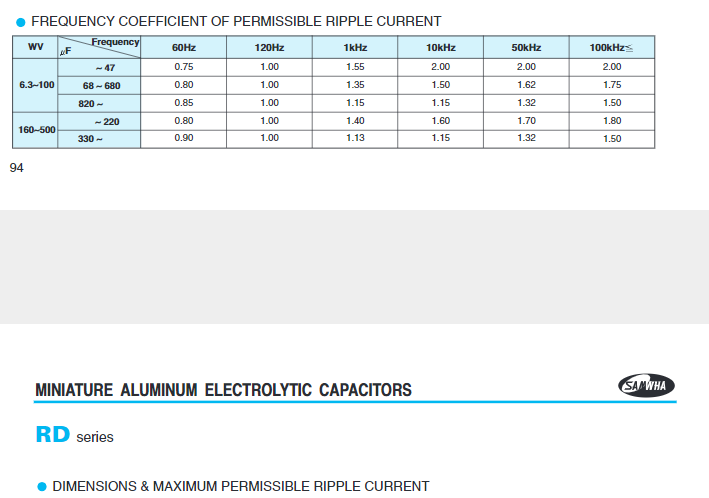

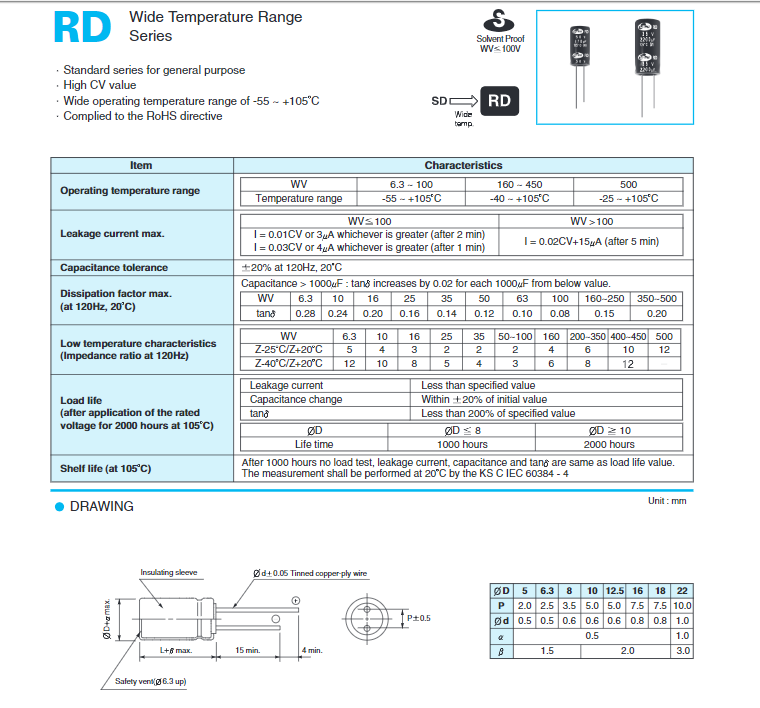

Wide Temperature Range RD Series
微型铝电解电容器
通用的标准系列
高CV值
宽工作温度范围-55 ~ + 105 C
执行RoHS指令
画
宽温度范围RD系列
470uf 16v 20% 8x11/5samwha
RD1C477M0811MPG159

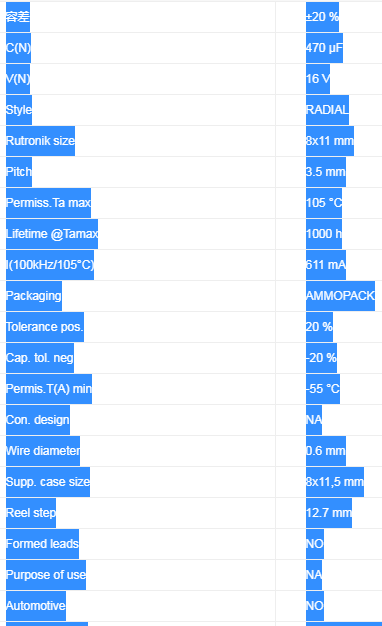

容差±20 %
其他
C(N)470 μF
V(N)16 V
StyleRADIAL
Rutronik size8x11 mm
Pitch3.5 mm
Permiss.Ta max105 °C
Lifetime @Tamax1000 h
I(100kHz/105°C)611 mA
PackagingAMMOPACK
Tolerance pos.20 %
Cap. tol. neg-20 %
Permis.T(A) min-55 °C
Con. designNA
Wire diameter0.6 mm
Supp. case size8x11,5 mm
Reel step12.7 mm
Formed leadsNO
Purpose of useNA
AutomotiveNO
Leadfree Defin.RoHS-conform
Formed padSTAND OFF
Customs Tariff No.85322200000
CountrySouth Korea
ABC-CodeC
Supplier Leadtime25 weeks
符合标准
RoHS标准RoHS-conform
