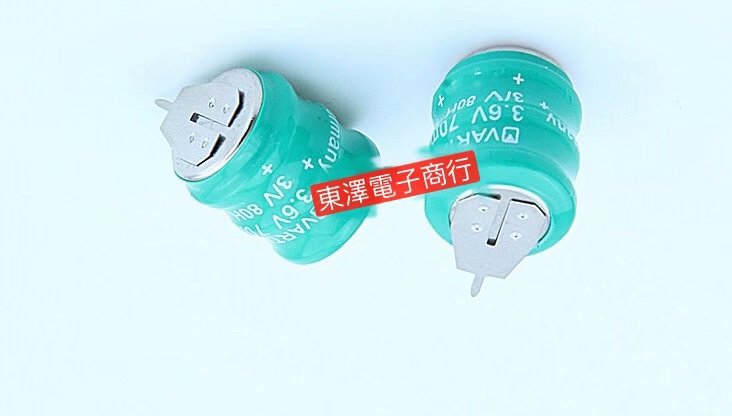

VARTA 3/V 80H 3.6V 70MAH

瓦尔塔镍氢电池

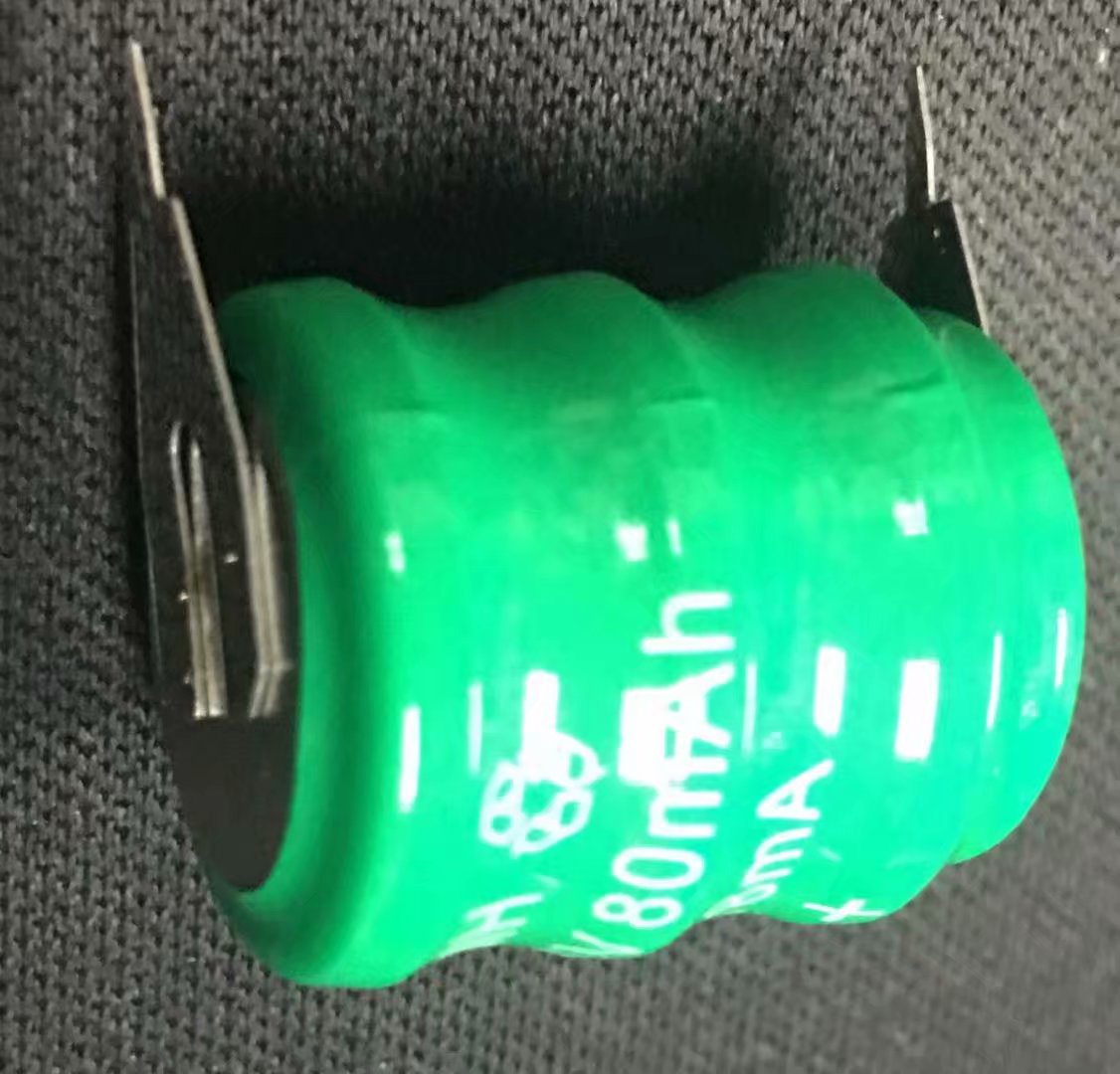

德国VARTA电池3.6V 70mah3V/80H

V80H高容量镍氢电池特点

1、 性能可靠，高容量，自放电量小

2、 可反复充电

3、 典型容量：70mah

4、 电压：3.6V

5、 生产地：德国

应用场合：电子设备、仪表仪器、电力检测设备、工业制造行业

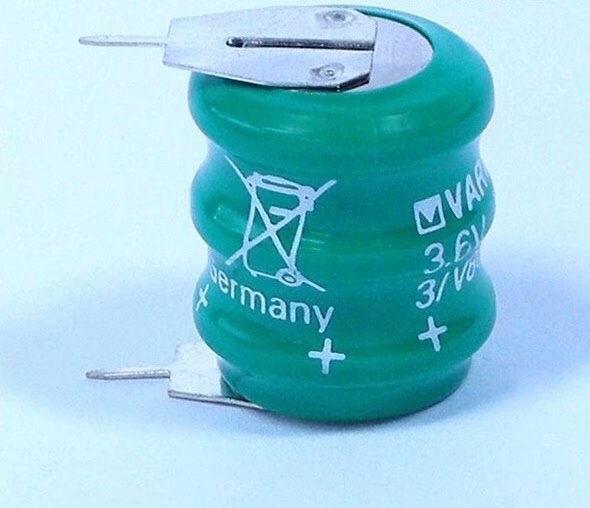

VARTA 3/V80H 3.6V70MAH

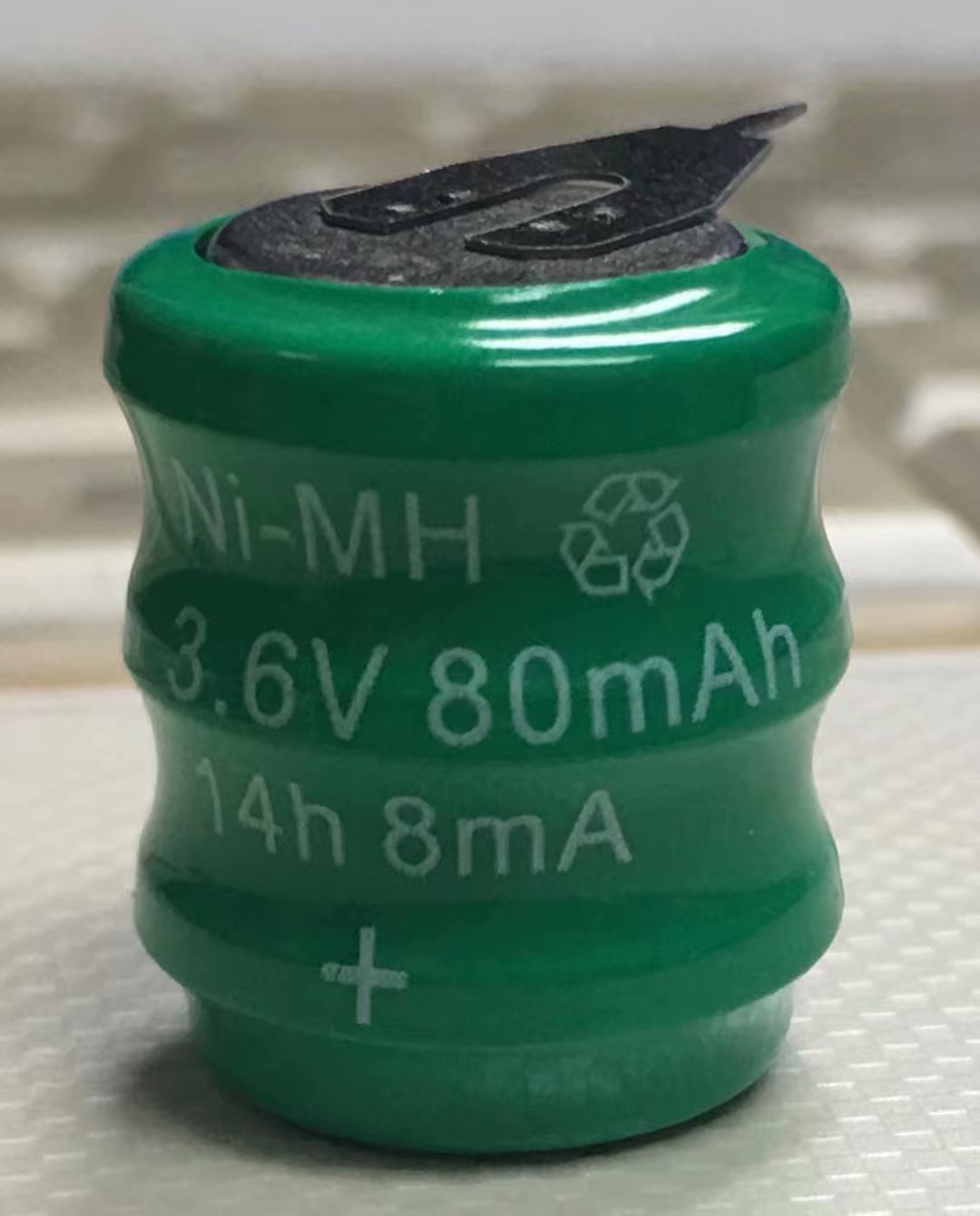

Ni-MH 3.6V 80mAH 14H 8mA

Ni-MH3.6V80mAH14H8mA

Ni-MH-3.6V-80mAH-14H-8mA

KMH Series
