| 品牌 | KE T491A225K010AT4513 T491A225K010AT4539 | 批号 | + |
| 封装 | T491A225K010AT4280 | 仓库 |
- 13C066 T491D107K010AS
東澤電氣
+86755 83682348

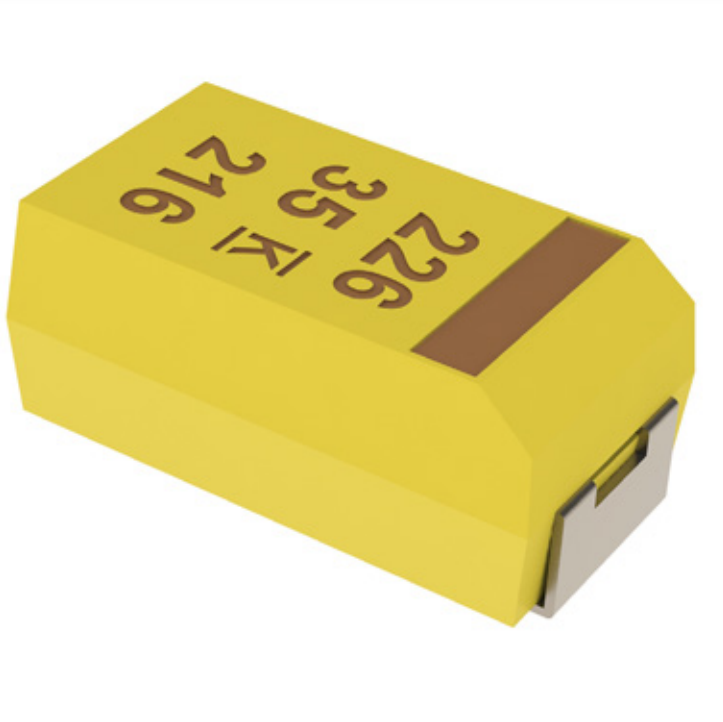

基美汽车钽电容

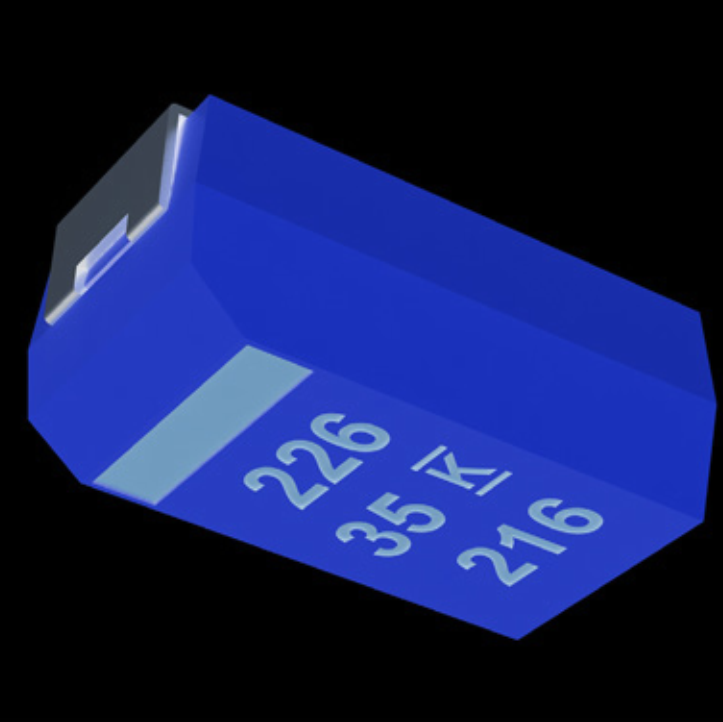

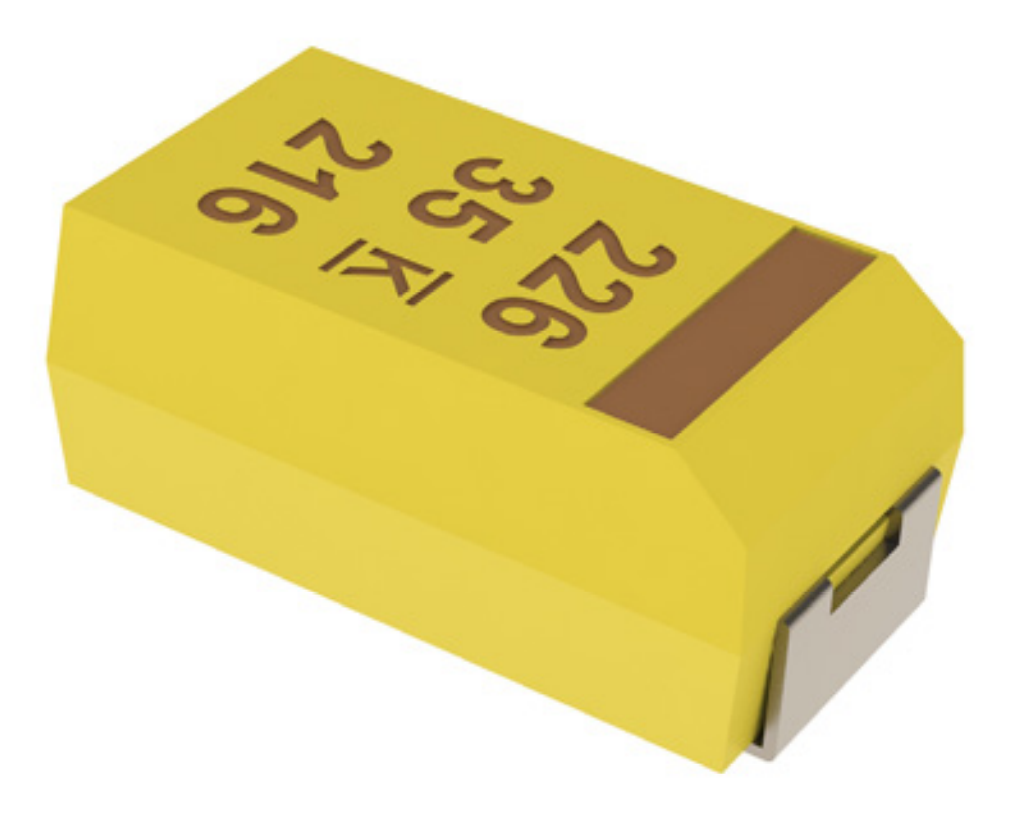

Tantalum Surface Mount Capacitors – Automotive Grade
表面安装电容器钽-汽车等级
T491汽车/工业品位 MnO2
T491 Automotive/Industrial Grade MnO2
AUTO =Automotive grade
汽车=汽车级
汽车= AEC-Q200认证
AUTO =AEC–Q200 certification

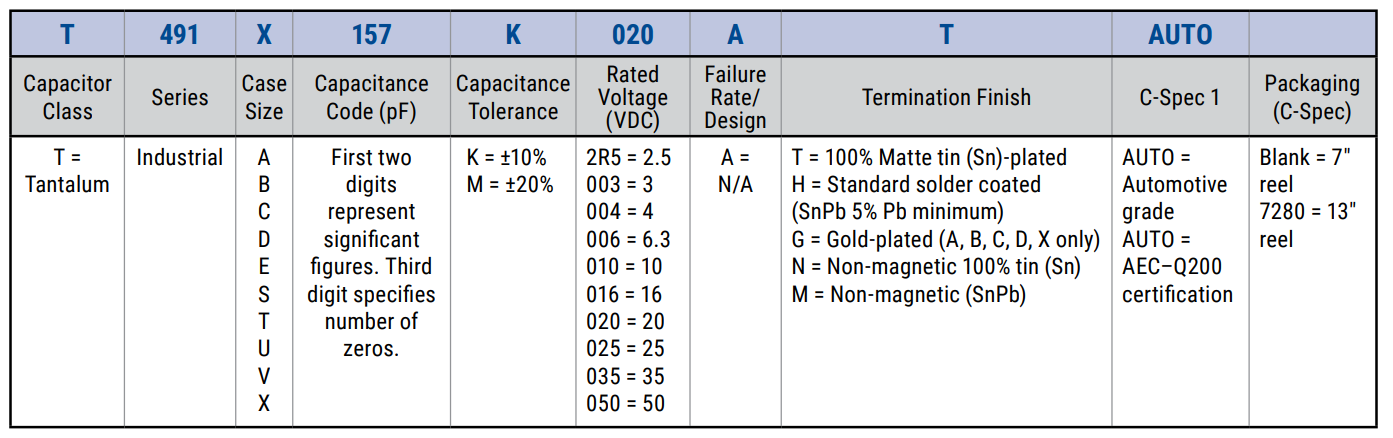

Termination终止完成Finish
T = 100% Matte tin (Sn)-plated
M = Non-magnetic (SnPb)
T = 100% 镀哑锡 (Sn)
H = Standard 标准焊锡涂层solder coated
(SnPb锡 最低5% 铅Pb minimum)
G = 镀金（仅限 A、B、C、D、X）
G = Gold-plated (A, B, C, D, X only)
N = Non-magnetic 100% tin (Sn)
N = 非磁性 100% 锡 (Sn)
M = 非磁性 (SnPb)

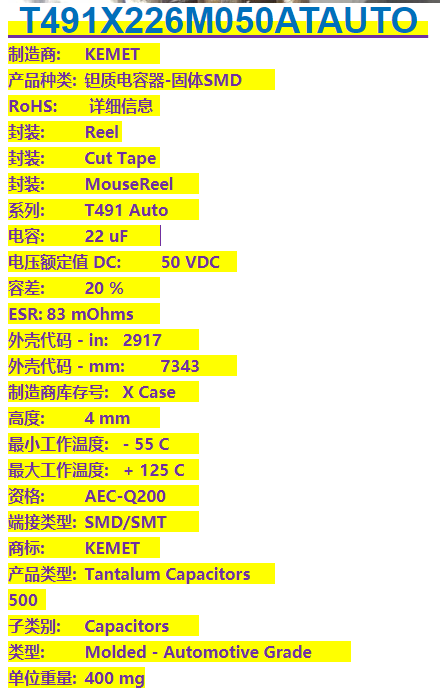

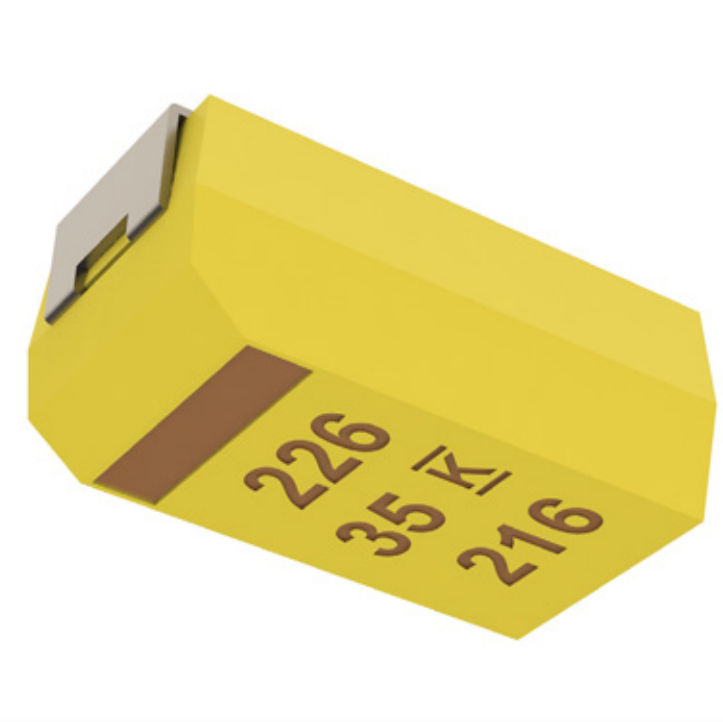

制造商: KEMET
产品种类: 钽质电容器-固体SMD
RoHS: 详细信息

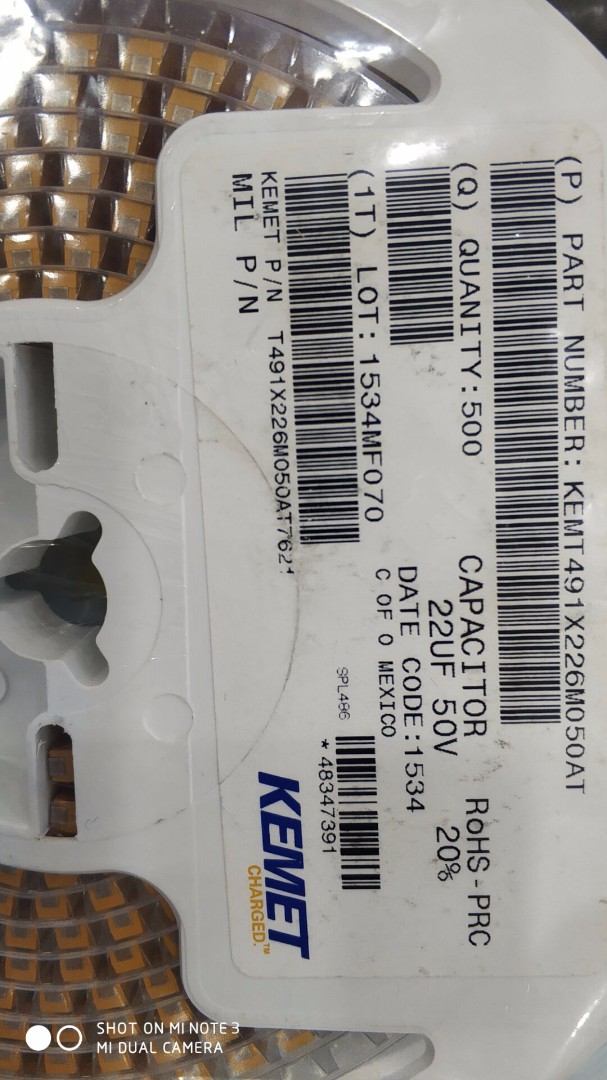

封装: Reel
封装: Cut Tape
封装: MouseReel
系列: T491 Auto
电容: 22 uF
电压额定值 DC: 50 VDC
容差: 20 %
ESR: 83 mOhms
外壳代码 - in: 2917
外壳代码 - mm: 7343
制造商库存号: X Case
高度: 4 mm
最小工作温度: - 55 C
最大工作温度: + 125 C
资格: AEC-Q200
端接类型: SMD/SMT
商标: KEMET
产品类型: Tantalum Capacitors
500
子类别: Capacitors
类型: Molded - Automotive Grade
单位重量: 400 mg

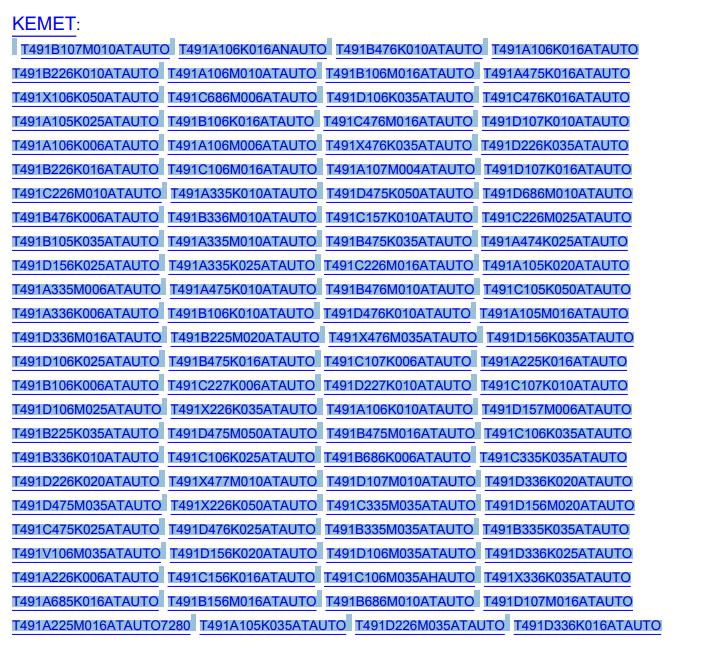

T491B107M010ATAUTO
T491A106K016ANAUTO
T491B476K010ATAUTO
T491A106K016ATAUTO
T491B226K010ATAUTO
T491A106M010ATAUTO
T491B106M016ATAUTO
T491A475K016ATAUTO
T491X106K050ATAUTO
T491C686M006ATAUTO
T491D106K035ATAUTO
T491C476K016ATAUTO
T491A105K025ATAUTO
T491B106K016ATAUTO
T491C476M016ATAUTO
T491D107K010ATAUTO
T491A106K006ATAUTO
T491A106M006ATAUTO
T491X476K035ATAUTO
T491D226K035ATAUTO
T491B226K016ATAUTO
T491C106M016ATAUTO
T491A107M004ATAUTO
T491D107K016ATAUTO
T491C226M010ATAUTO
T491A335K010ATAUTO
T491D475K050ATAUTO
T491D686M010ATAUTO
T491B476K006ATAUTO
T491B336M010ATAUTO
T491C157K010ATAUTO
T491C226M025ATAUTO
T491B105K035ATAUTO
T491A335M010ATAUTO
T491B475K035ATAUTO
T491A474K025ATAUTO
T491D156K025ATAUTO
T491A335K025ATAUTO
T491C226M016ATAUTO
T491A105K020ATAUTO
T491A335M006ATAUTO
T491A475K010ATAUTO
T491B476M010ATAUTO
T491C105K050ATAUTO
T491A336K006ATAUTO
T491B106K010ATAUTO
T491D476K010ATAUTO
T491A105M016ATAUTO
T491D336M016ATAUTO
T491B225M020ATAUTO
T491X476M035ATAUTO
T491D156K035ATAUTO
T491D106K025ATAUTO
T491B475K016ATAUTO
T491C107K006ATAUTO
T491A225K016ATAUTO
T491B106K006ATAUTO
T491C227K006ATAUTO
T491D227K010ATAUTO
T491C107K010ATAUTO
T491D106M025ATAUTO
T491X226K035ATAUTO
T491A106K010ATAUTO
T491D157M006ATAUTO
T491B225K035ATAUTO
T491D475M050ATAUTO
T491B475M016ATAUTO
T491C106K035ATAUTO
T491B336K010ATAUTO
T491C106K025ATAUTO
T491B686K006ATAUTO
T491C335K035ATAUTO
T491D226K020ATAUTO
T491X477M010ATAUTO
T491D107M010ATAUTO
T491D336K020ATAUTO
T491D475M035ATAUTO
T491X226K050ATAUTO
T491C335M035ATAUTO
T491D156M020ATAUTO
T491C475K025ATAUTO
T491D476K025ATAUTO
T491B335M035ATAUTO
T491B335K035ATAUTO
T491V106M035ATAUTO
T491D156K020ATAUTO
T491D106M035ATAUTO
T491D336K025ATAUTO
T491A226K006ATAUTO
T491C156K016ATAUTO
T491C106M035AHAUTO
T491X336K035ATAUTO
T491A685K016ATAUTO
T491B156M016ATAUTO
T491B686M010ATAUTO
T491D107M016ATAUTO
T491A225M016ATAUTO7280
T491A105K035ATAUTO
T491D226M035ATAUTO
T491D336K016ATAUTO
==

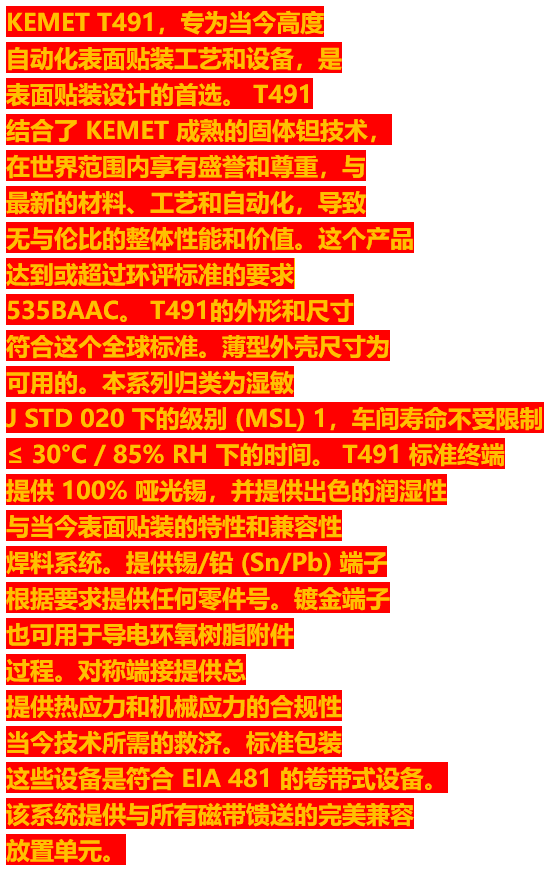

KEMET T491，专为当今高度
自动化表面贴装工艺和设备，是
表面贴装设计的首选。 T491
结合了 KEMET 成熟的固体钽技术，
在世界范围内享有盛誉和尊重，与
最新的材料、工艺和自动化，导致
无与伦比的整体性能和价值。这个产品
达到或超过环评标准的要求
535BAAC。 T491的外形和尺寸
符合这个全球标准。薄型外壳尺寸为
可用的。本系列归类为湿敏
J STD 020 下的级别 (MSL) 1，车间寿命不受限制
≤ 30°C / 85% RH 下的时间。 T491 标准终端
提供 100% 哑光锡，并提供出色的润湿性
与当今表面贴装的特性和兼容性
焊料系统。提供锡/铅 (Sn/Pb) 端子
根据要求提供任何零件号。镀金端子
也可用于导电环氧树脂附件
过程。对称端接提供总
提供热应力和机械应力的合规性
当今技术所需的救济。标准包装
这些设备是符合 EIA 481 的卷带式设备。
该系统提供与所有磁带馈送的完美兼容
放置单元。

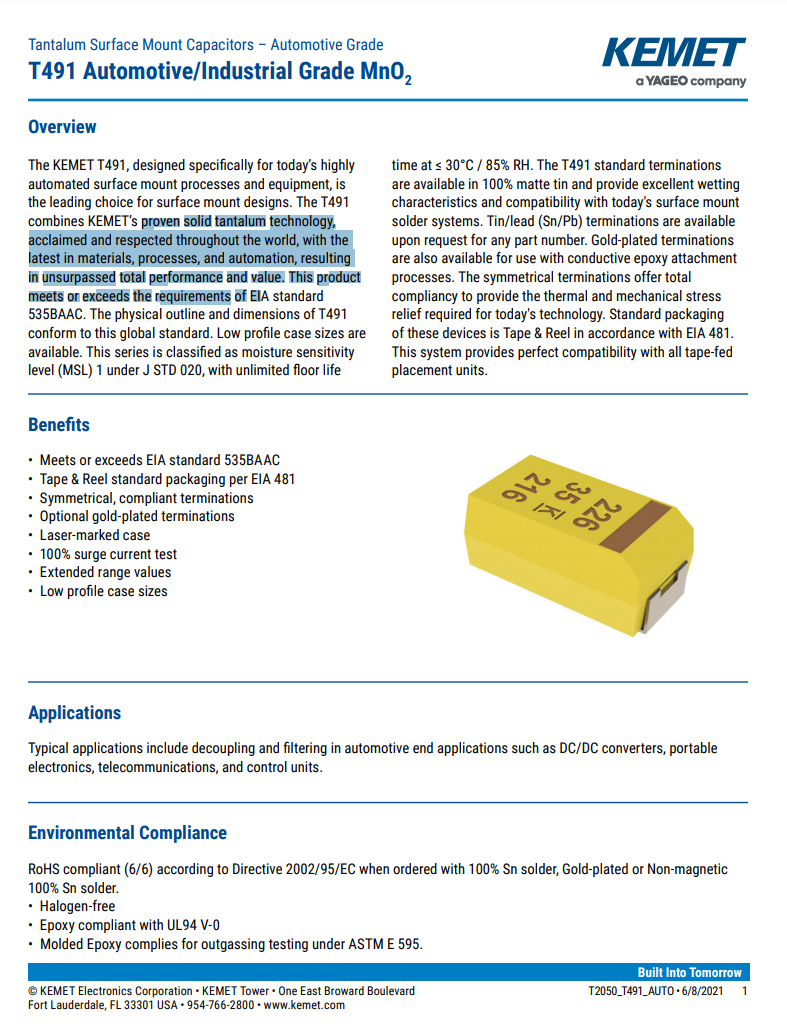

The KEMET T491, designed specifically for today’s highly
automated surface mount processes and equipment,
is the leading choice for surface mount designs.
The T491
combines KEMET’s proven solid tantalum technology,
acclaimed and respected throughout the world,
with the
latest in materials, processes, and automation, resulting
in unsurpassed total performance and value.
This product meets or exceeds the requirements of EIA standard
535BAAC.
The physical outline and dimensions of T491
conform to this global standard. Low profile case sizes are
available. This series is classified as moisture sensitivity
level (MSL) 1 under J STD 020,
with unlimited floor life
time at ≤ 30°C / 85% RH.
The T491 standard terminations
are available in 100% matte tin and provide excellent wetting
characteristics and compatibility with today's surface mount
solder systems.
Tin/lead (Sn/Pb) terminations are available
upon request for any part number. Gold-plated terminations
are also available for use with conductive epoxy attachment
processes. The symmetrical terminations offer total
compliancy to provide the thermal and mechanical stress
relief required for today's technology. Standard packaging

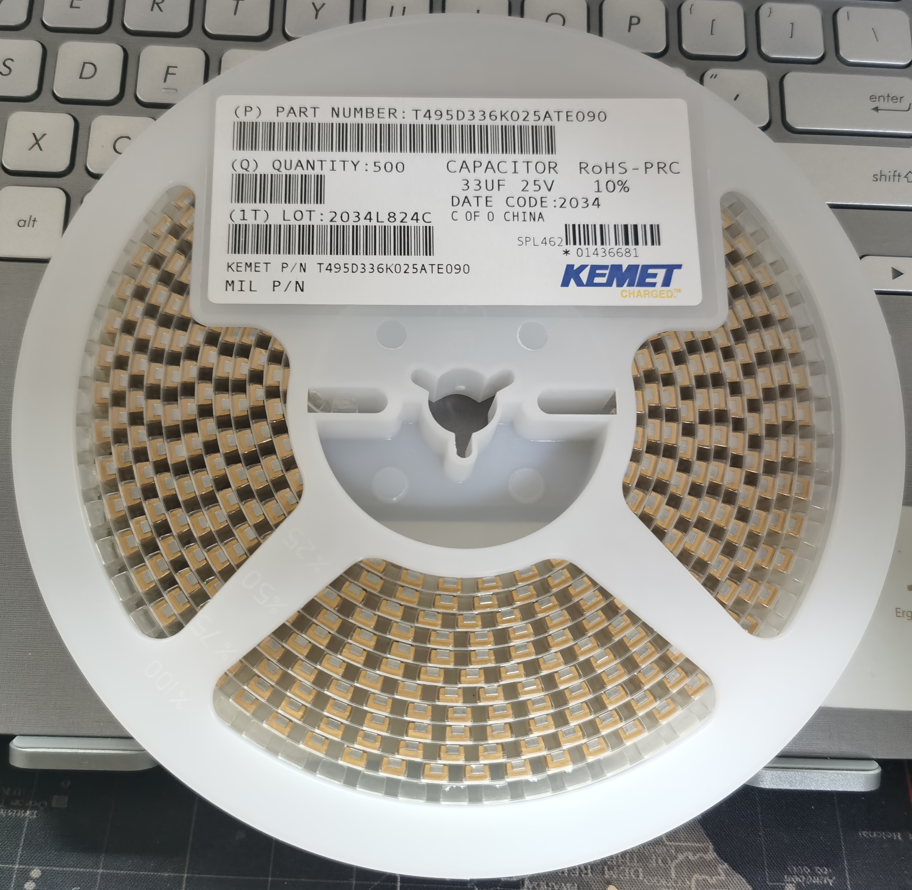

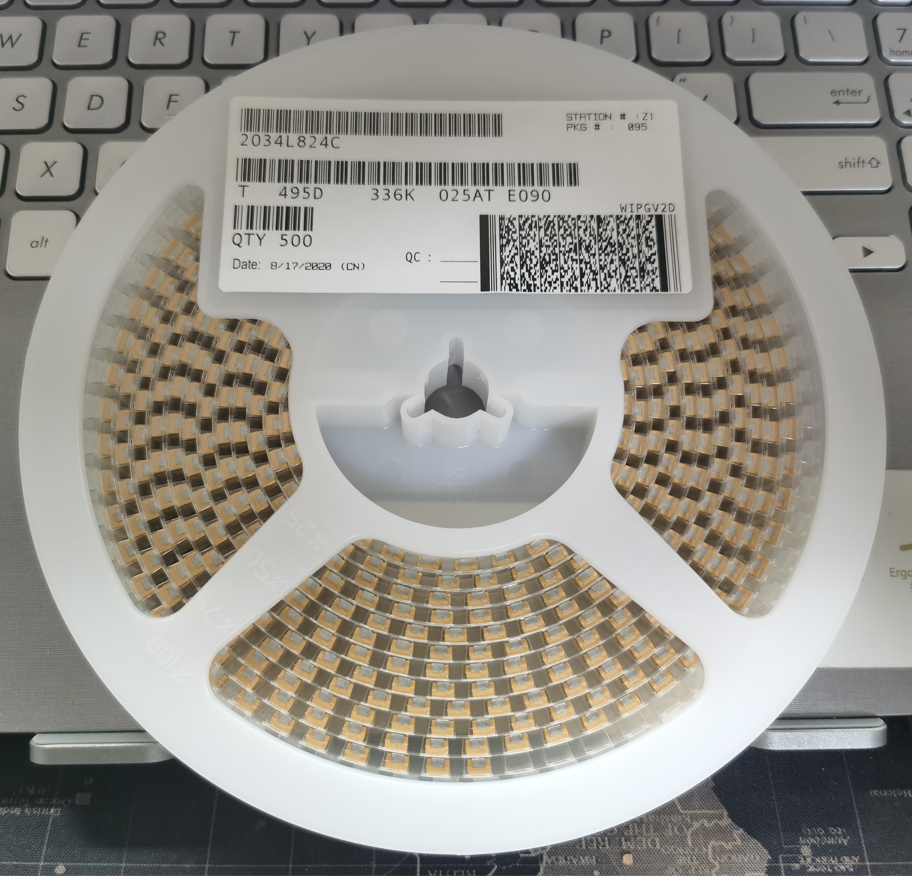

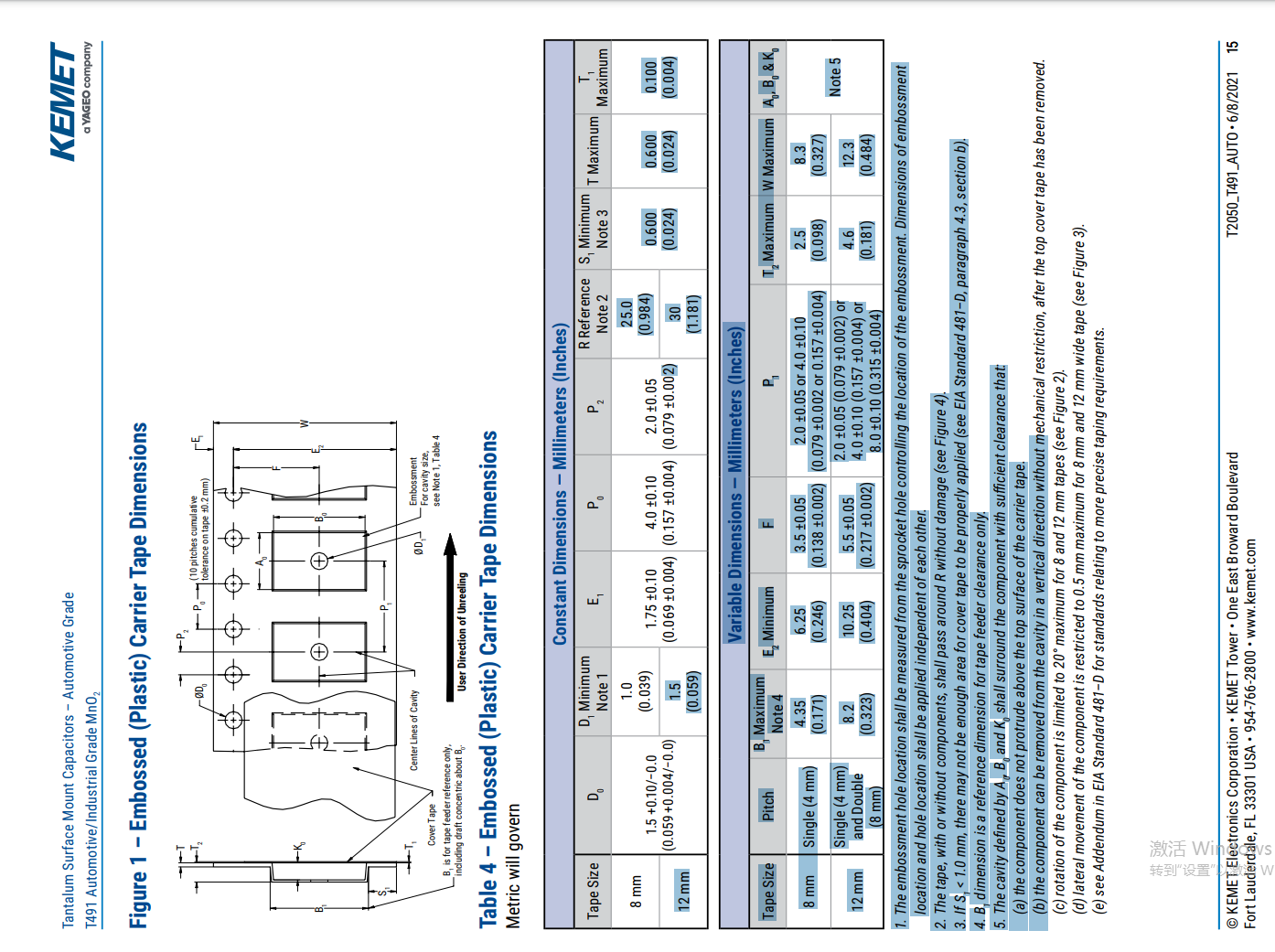

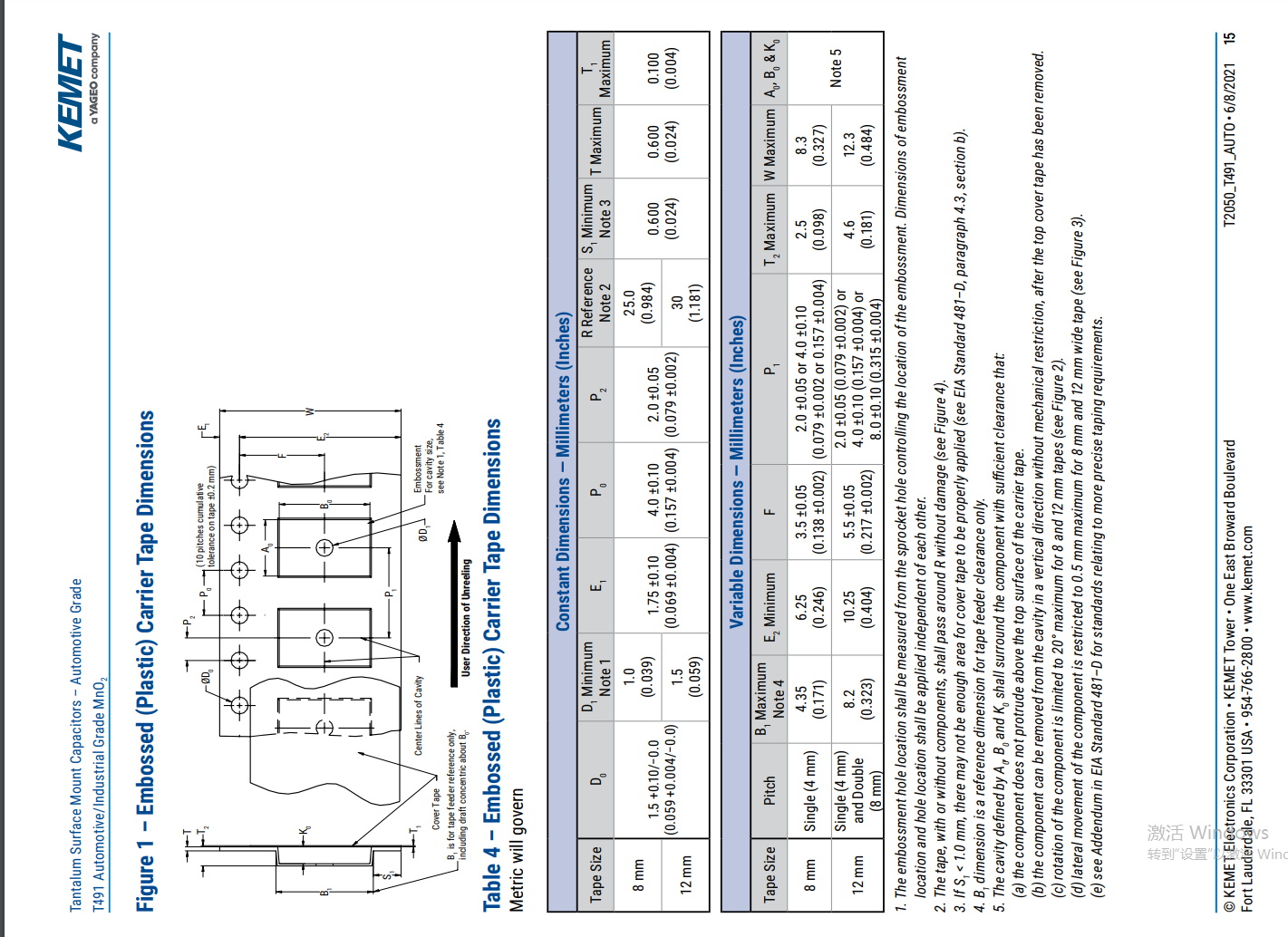

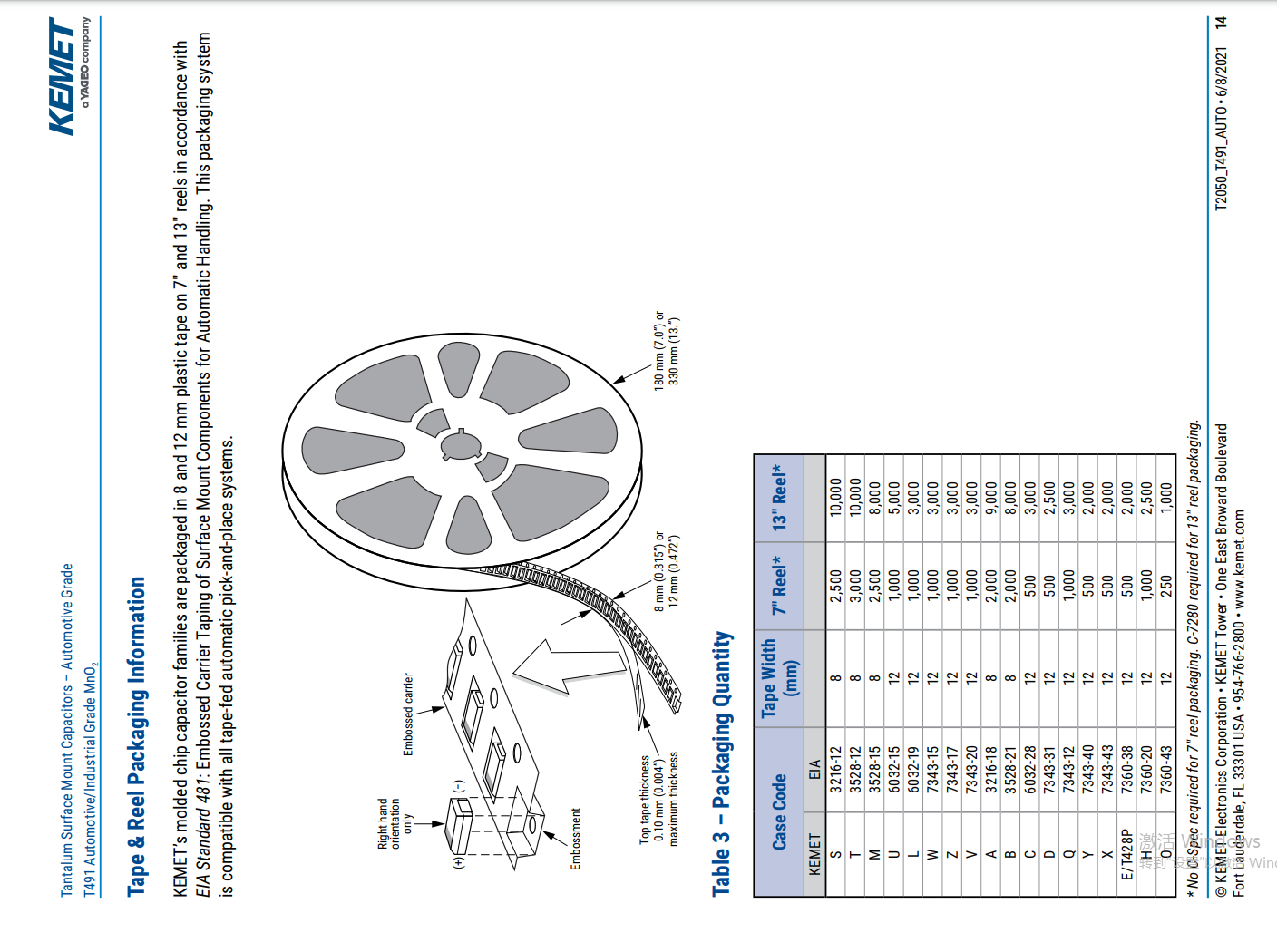

of these devices is Tape & Reel in accordance with EIA 481.
This system provides perfect compatibility with all tape-fed
placement units.

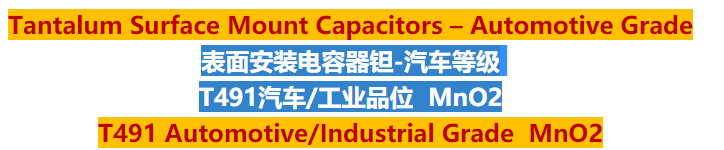

Tantalum Surface Mount Capacitors – Automotive Grade
表面安装电容器钽-汽车等级
T491汽车/工业品位 MnO2
T491 Automotive/Industrial Grade MnO2

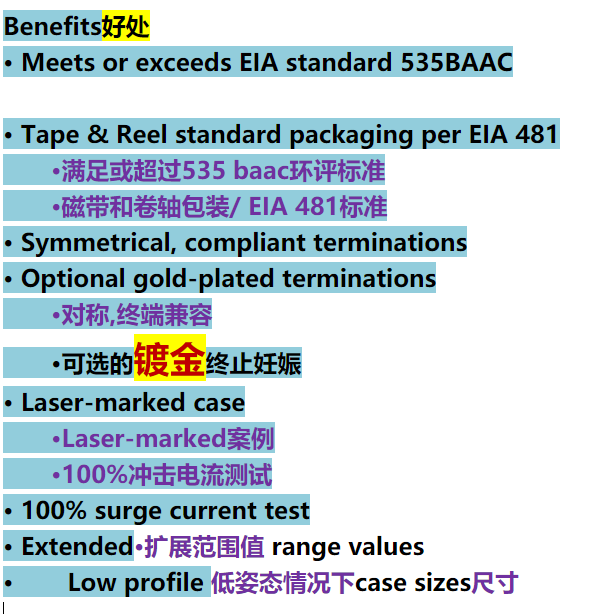

Benefits好处
? Meets or exceeds EIA standard 535BAAC
? Tape & Reel standard packaging per EIA 481
?满足或超过535 baac环评标准
?磁带和卷轴包装/ EIA 481标准
? Symmetrical, compliant terminations
? Optional gold-plated terminations
?对称,终端兼容
?可选的镀金终止妊娠
? Laser-marked case
?Laser-marked案例
?100%冲击电流测试
? 100% surge current test
? Extended?扩展范围值 range values
? Low profile 低姿态情况下case sizes尺寸

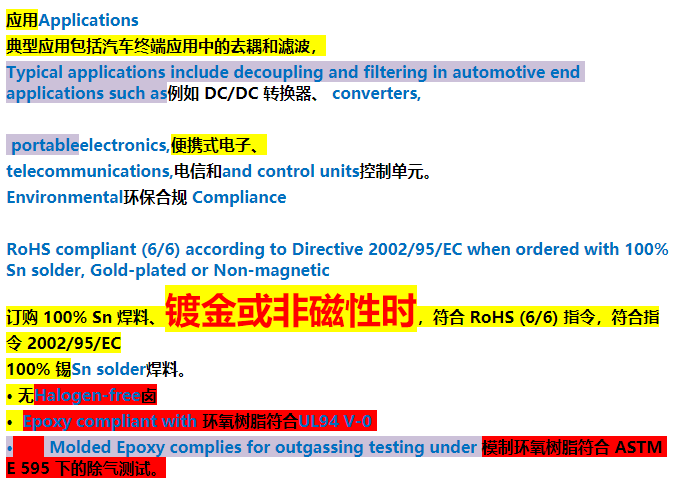

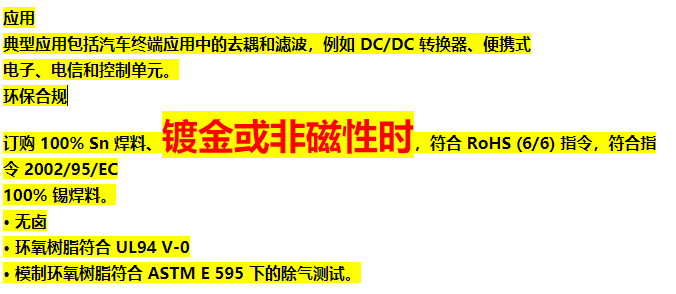

应用Applications
典型应用包括汽车终端应用中的去耦和滤波，
Typical applications include decoupling and filtering in automotive end applications such as例如 DC/DC 转换器、 converters,
portableelectronics,便携式电子、
telecommunications,电信和and control units控制单元。
Environmental环保合规 Compliance
RoHS compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder, Gold-plated or Non-magnetic
订购 100% Sn 焊料、镀金或非磁性时，符合 RoHS (6/6) 指令，符合指令 2002/95/EC
100% 锡Sn solder焊料。
? 无Halogen-free卤
? Epoxy compliant with 环氧树脂符合UL94 V-0
? Molded Epoxy complies for outgassing testing under 模制环氧树脂符合 ASTM E 595 下的除气测试。

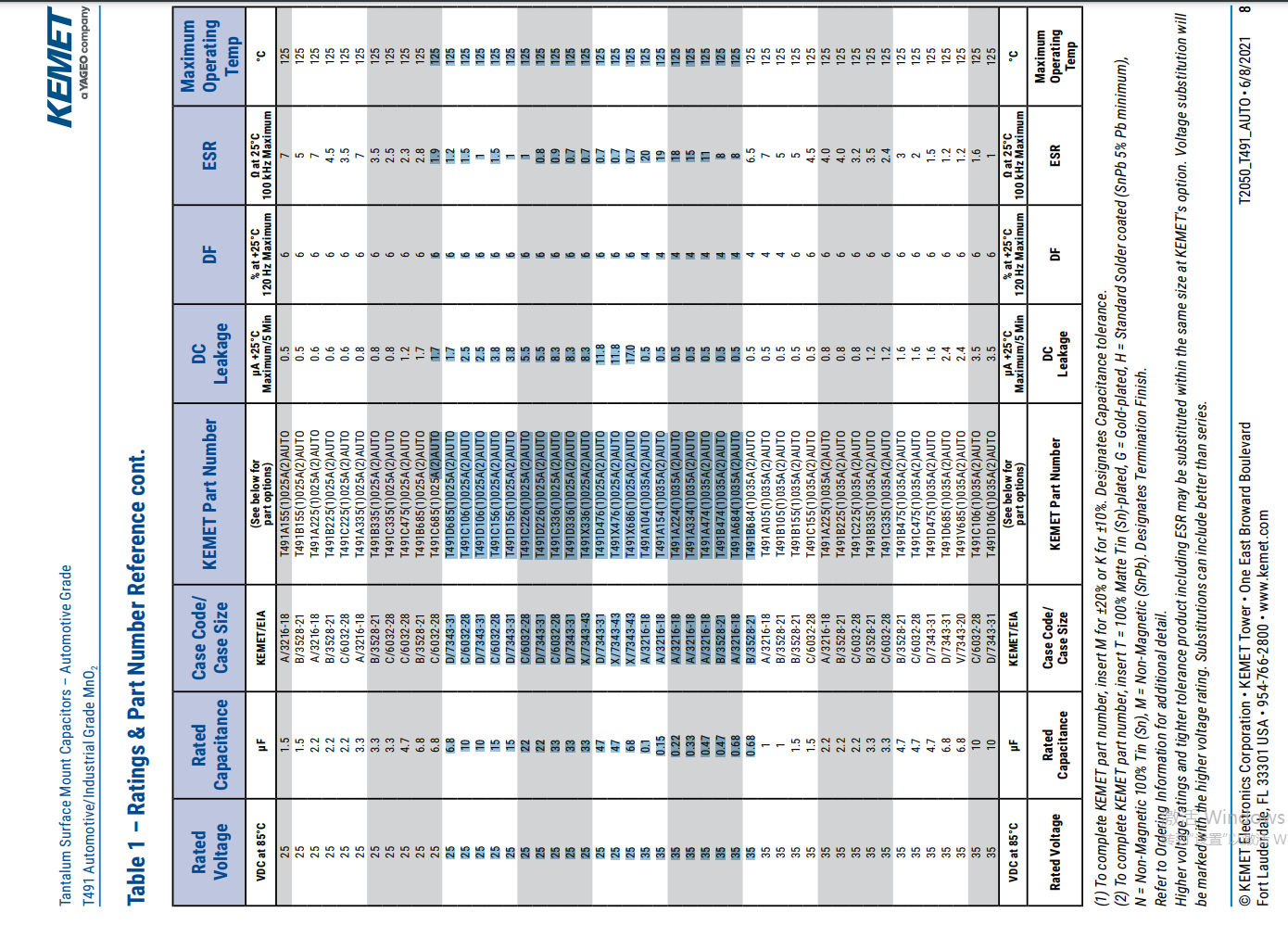

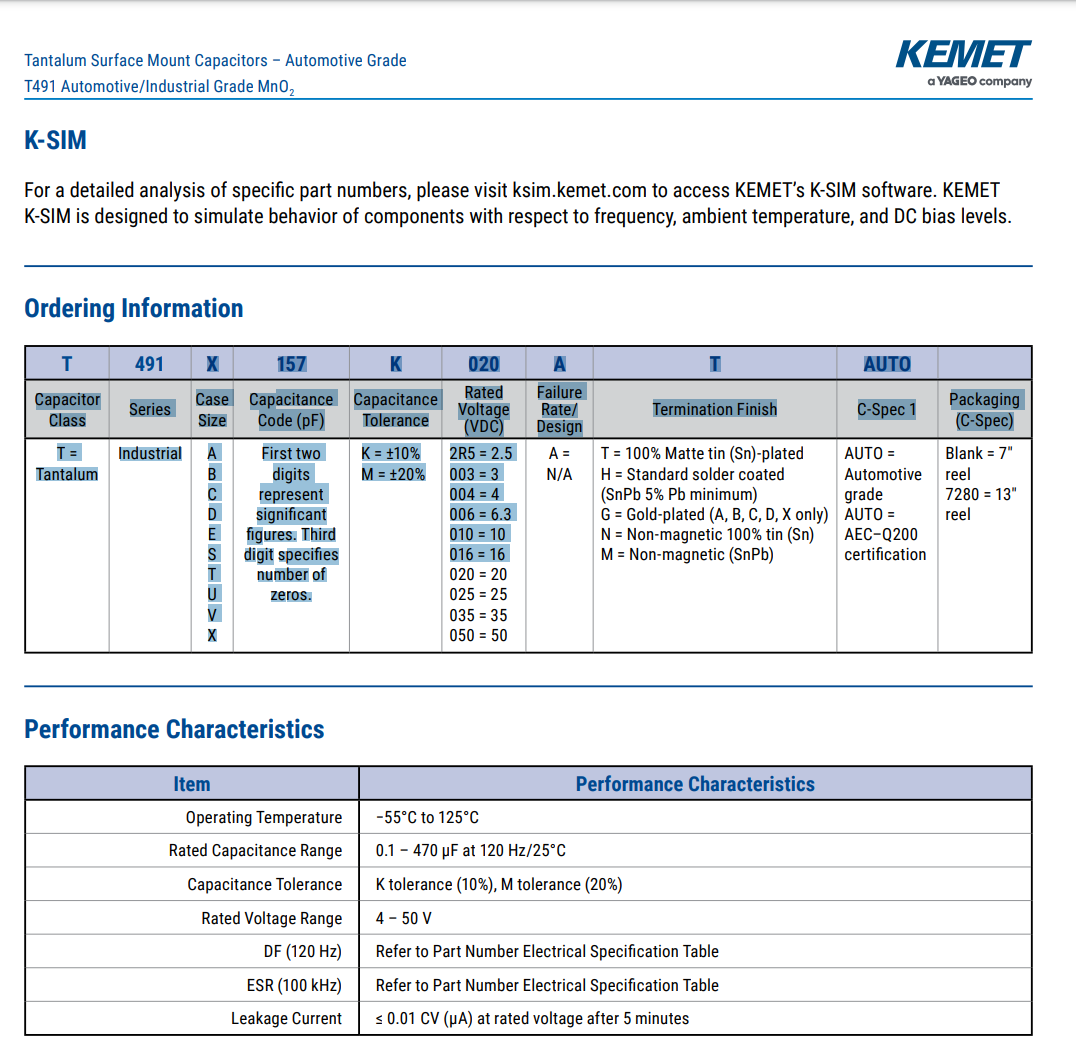

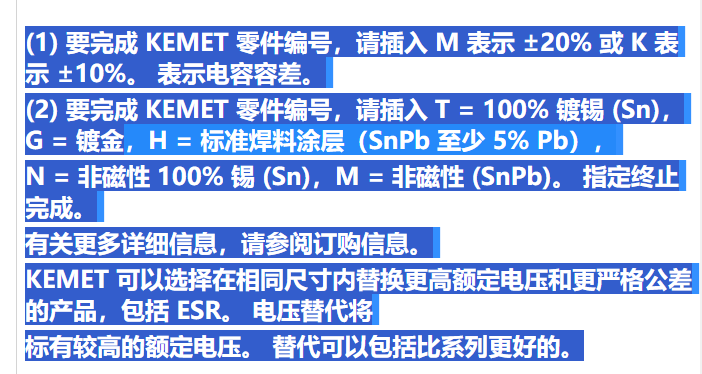

(1) 要完成 KEMET 零件编号，请插入 M 表示 ±20% 或 K 表示 ±10%。 表示电容容差。
(1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates Capacitance tolerance.
(2) 要完成 KEMET 零件编号，
(2) To complete KEMET part number, insert
T = 100% Matte Tin (Sn)-plated,
请插入 T = 100% 镀锡 (Sn)，
G = 镀金，
G = Gold-plated
H = 标准焊料涂层（SnPb 至少 5% Pb），
N = 非磁性 100% 锡 (Sn)，
H = Standard Solder coated (SnPb 5% Pb minimum),
N = Non-Magnetic 100% Tin (Sn),
M = 非磁性 (SnPb)。 指定终止完成。
M = Non-Magnetic (SnPb). Designates Termination Finish.
Refer to Ordering Information for additional detail.
有关更多详细信息，请参阅订购信息。
KEMET 可以选择在相同尺寸内替换更高额定电压和更严格公差的产品，包括 ESR。 电压替代将
标有较高的额定电压。 替代可以包括比系列更好的。
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at
KEMET's option. Voltage substitution will
be marked with the higher voltage rating. Substitutions can include better than series.
=====================
