| 品牌 | VIS/ 293D106X0010C2T 293D106K9016B2TE3 | 批号 | + |
| 封装 | 293D-474X9035B2T | 仓库 |
- 2C044固体钽表面山芯片电容器

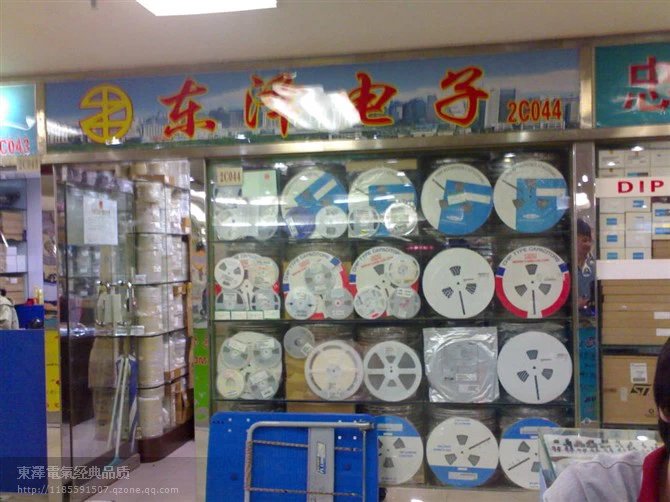

東澤電氣
+86 755 83682348

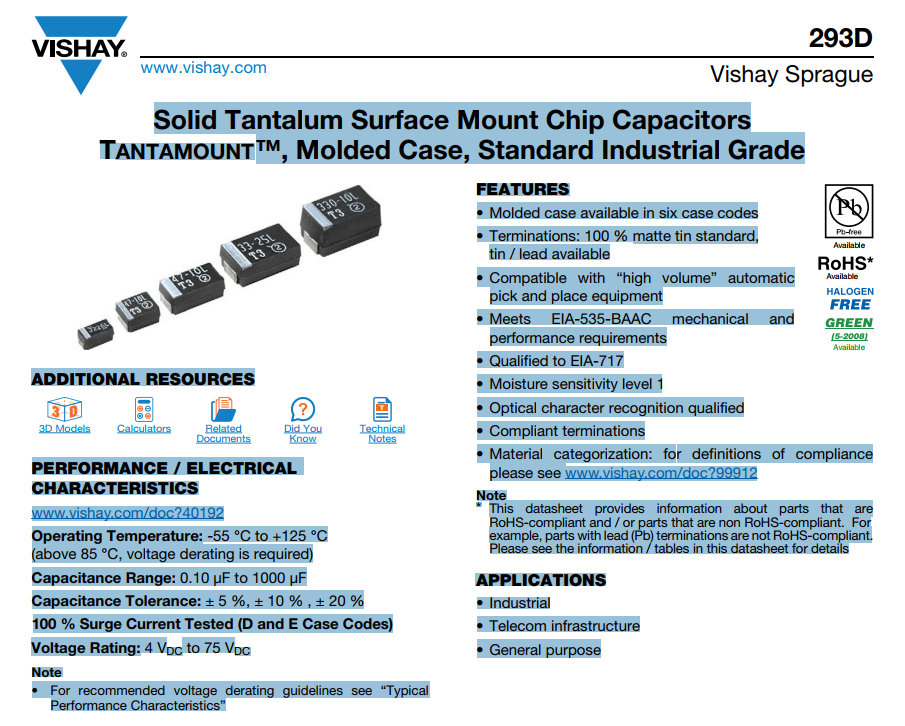

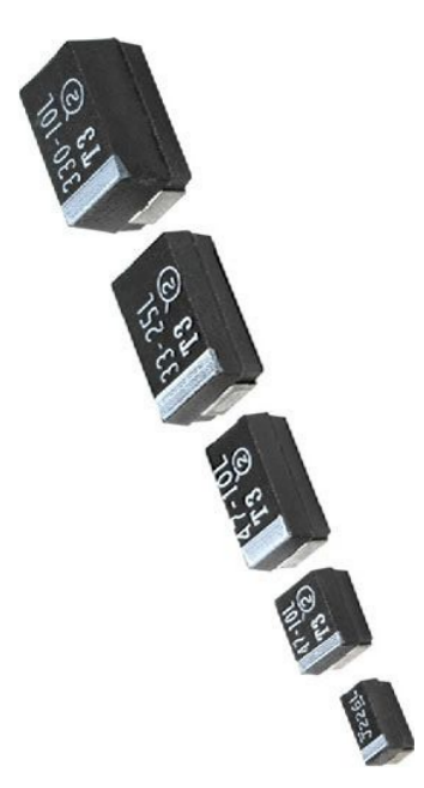

Solid Tantalum Surface Mount Chip Capacitors
固体钽表面山芯片电容器
等于是?、塑壳、标准工业品位
TANTAMOUNT?, Molded Case, Standard Industrial Grade
制造商编号：
293D477X06R3E2TE3
制造商：
客户编号:
说明：
钽质电容器-固体SMD 470uF 6.3volts 20% E case Molded
数据表:

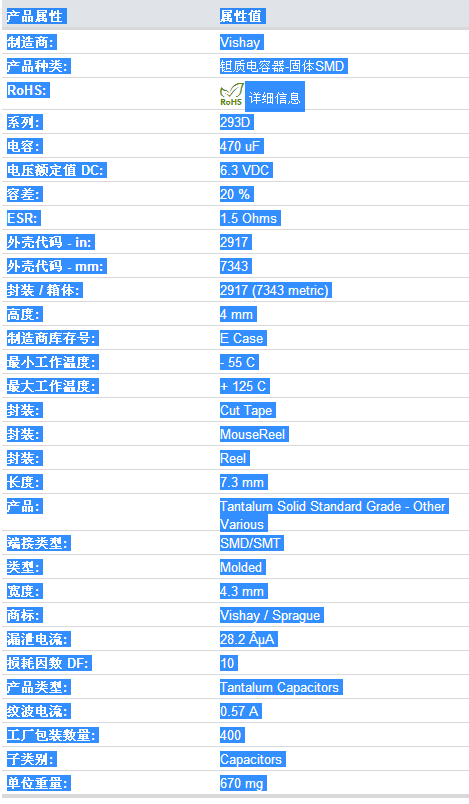

产品属性 属性值 搜索类似
制造商: Vishay
产品种类: 钽质电容器-固体SMD
RoHS: 详细信息
系列: 293D
电容: 470 uF
电压额定值 DC: 6.3 VDC
容差: 20 %
ESR: 1.5 Ohms
外壳代码 - in: 2917
外壳代码 - mm: 7343
封装 / 箱体: 2917 (7343 metric)
高度: 4 mm
制造商库存号: E Case
最小工作温度: - 55 C
最大工作温度: + 125 C
封装: Cut Tape
封装: MouseReel
封装: Reel
长度: 7.3 mm
产品: Tantalum Solid Standard Grade - Other Various
端接类型: SMD/SMT
类型: Molded
宽度: 4.3 mm
商标: Vishay / Sprague
漏泄电流: 28.2 ?μA
损耗因数 DF: 10
产品类型: Tantalum Capacitors
纹波电流: 0.57 A

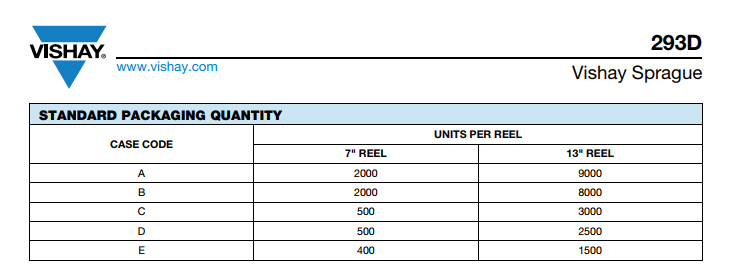

工厂包装数量: 400
子类别: Capacitors
单位重量: 670 mg
293D474X9025A2T
10-10MN 1010MN 293D106X0010B2T
10.16 1016rdB16v10uf 293D106X9016B2te3
TCKOG106AT-LF
293D475X9050D2TE3
293D107X9016D2TE3
293D106X0010B2T326
293D106X0010A2T
293D226X06R3A2T
293D685X0025C2WLA
293D337X9010E2Te3
293D337X9010D2Te3
293D337X9010D2T
293D337X0010E2Te3
293D337X0010D2T
293D226X0010B2T
293D106X9050E2W
293d106x9016b2t
293D106X9016B2T
293D106X9016B2T
293D106X9035D2WL
293D106X9035D2WE3
293D106X9035D2W
293D106X9035D2T
293D336X9010C2T
J226 293D226X06R3A2T
293D106X0016C2T
293D106X0010C2T
293D106K9016B2TE3
293D105X9050C2T
293D105X9035B2TE3
293D105X9025B2T
293D476X9016D2TE3
293D476X9016CT2
293D226X06R3A2T
293D476X9010D2T
293D-474X9035B2T
293D477X96R3E2T
293D474X9035B2T
293D475X9010A2T
293D476X06R3B2TE3
293D476X0060D2T
293D335X9035B2TE3
293D684X9035A2TE3
293D475X9035B2TE3
293D337X0010D2Te3
93d226x96r3a2t
293D476X0025D2T
293D226X0016D2T
293D337X9010E2T
293D225X9020B2T
293D226X0016C2T
293D156X9010B2WE3
293D225X9016B2TE3
293D225X9016B2T
293D337X0010E2T
293D335X9016A2TE3
293D475X0016B2TE3
293D475X0016B2T
293D-225X9010A2T
293D225X9010A2T
293D475X9010C2T
293d225x0020b2tE3
293D225X0020B2T
293D107X9016D2T
293D107X9010D2T
293D107X9010C2TE3
293D106X9050D2T3
293D106X9016C2T
293D157X96R3C2TE3
293D157X9010D2TE3
293D157X9010C2TE3
293D105X0035B2T
293D106X9035D2TE3
293D106X9035D2T
293D105X0025B2T
293D106X9010B2T
293D156X0016C2T
293D106X9010A2TE3
293D106X06R3B2T
293D106X9025B2T
293D107X0010D2T
293D106X9020B2T
293CX7R224K050B SP293D2249050B2TE3
22-10M8 93D226X0010B2TB22UF10V
293D156X0010C2T
293D476X9016D2T
293D477X06R3E2T
293D685X9016B2T
293D686X9010D2T
293D686X96R3B2T
293D334X9035A2T
293D335X0016B2T
293D335X9010A2T
293D335X9016B2T
293D335X9020B2T
293D335X9025C2T
293D336X0016C2T
293D336X0025D2T
293D336X06R3B2T
293D336X9016C2T
293D336X9016D2T
293D336X96R3B2T
293D336X96R3C2T
293D337X06R3E2T
293D337X9010E2T
293D337X96R3D2T
293D474X9050C2T
293D475X0020B2T
293D475X0025C2T
293D475X9010B2T
293D475X9020A2T
293D475X9020B2T
293D475X9025C2T
293D475X9035C2T
293D476X0010B2T
293D476X0010C2T
293D476X0016C2T
293D476X0020D2T
293D476X06R3B2T
293D476X9010B2T
293D684X9035A2T
293D685X9016A2T
293D685X96R3A2T
293D686X9010C2T
293D686X9016D2W
293D686X96R3D2T
293D106X0010A2T
293D106X0010B2T
293D106X0025C2T
293D106X0025D2T
293D106X5016C2T
293D106X9016A2T
293D106X9016C2W
293D106X96R3B2T
293D155X9025B2T
293D155X9035B2T
293D156X9016C2T
293D157X06R3C2T
293D225X9050D2T
293D226X0010C2T
293D226X0016B2T
293D226X0016C2T
293D226X96R3A2T
293D226X96R3B2T
293D227X9010E2T
293D227X96R3D2T
293D334X9050B2T
293D335X9016A2T
293D335X9035C2T
293D336X9010B2T
293D336X9010C2T
293D336X9010D2T
293D474X9025A2T
293D474X9050B2T
293D475X9020C2T
293D476X0016D2T
293D476X9016C2T
293D104X9050A2T
293D105X0016A2T
293D105X9025A2T
293D105X9050C2T
293D104X9035A2T
293D105X0020A2T
293D105X0035B2W
293D105X9050C2W
293D106X0016B2T
293D106X0020B2T
293D106X06R3A2T
293D106X9010B2T
293D106X9016C2T
293D106X9020C2T
293D106X9035D2T
293D107X0010D2T
293D107X9020E2T
293D155X9020A2T
293D155X9035C2T
293D156X9010B2T
293D156X9016B2T
293D156X9020C2T
293D157X9010E2T
293D157X9016E2T
293D157X96R3C2T
293D224X9050B2T
293D225X0016A2T
293D225X0020B2T

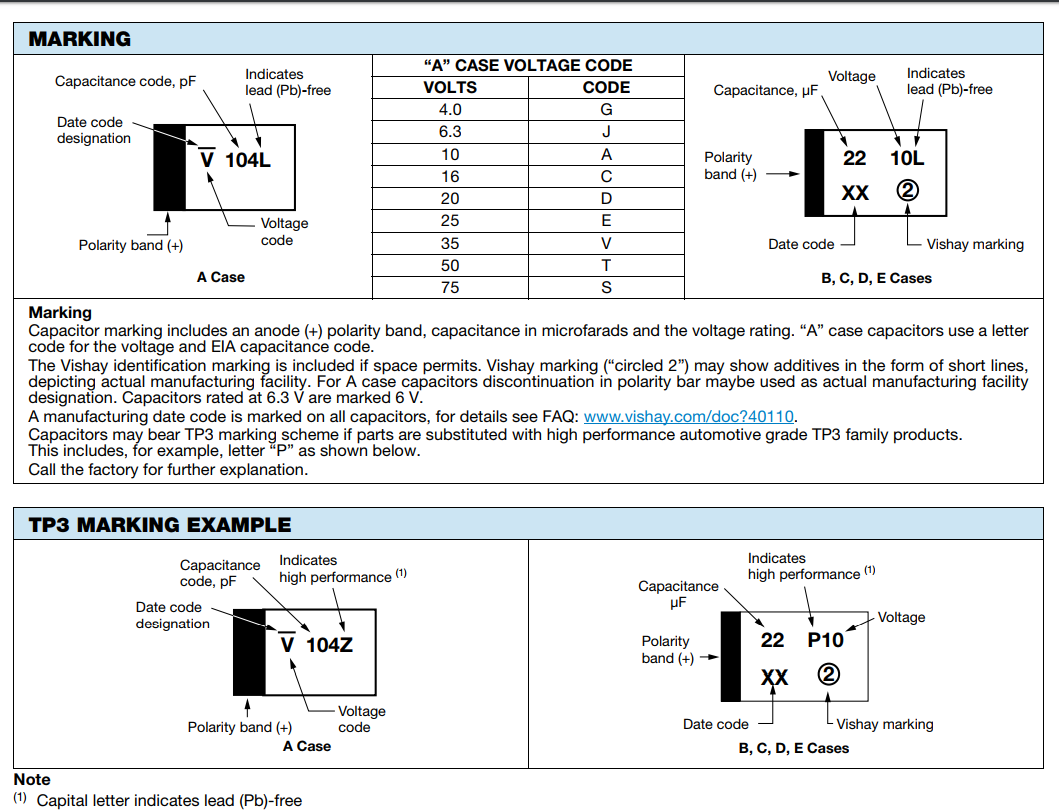

Indicates 表明
lead 铅(Pb)-free无
Date code日期代码
指定designation
Indicates表明
high performance 高性能(1
Vishay marking威世标志

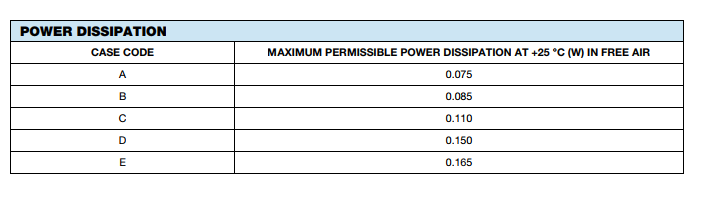

MAXIMUM PERMISSIBLE POWER DISSIPATION AT +25 °C (W) IN FREE AIR
最大允许功耗在+ 25°C (W)在自由空气

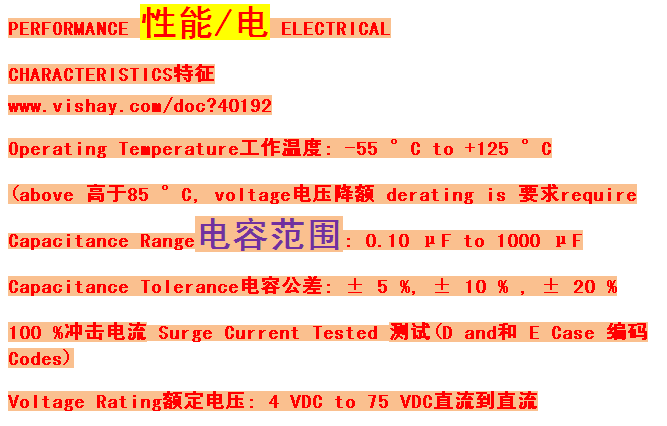

PERFORMANCE 性能/电 ELECTRICAL
CHARACTERISTICS特征
www.vishay.com/doc?40192
Operating Temperature工作温度: -55 °C to +125 °C
(above 高于85 °C, voltage电压降额 derating is 要求require
Capacitance Range电容范围: 0.10 μF to 1000 μF
Capacitance Tolerance电容公差: ± 5 %, ± 10 % , ± 20 %
100 %冲击电流 Surge Current Tested 测试(D and和 E Case 编码Codes)
Voltage Rating额定电压: 4 VDC to 75 VDC直流到直流
Note
? For recommended voltage derating guidelines see
请注意
?推荐电压降额指南看到
“典型的性能特征”
“Typical Performance Characteristics”
Note请注意
? For recommended voltage derating guidelines see
推荐电压降额指南看到
“典型的性能特征”
“Typical Performance Characteristics”
FEATURES 特性
? Molded case available 塑壳可以在in六 six 码case codes
? Terminations终端: 100 %哑光锡标准 matte tin standard,
tin锡/铅可用 lead available
? Compatible with与 “high 大容量volume” automatic自动兼容
pick and设备选择和地点 place equipment
? Meets符合 EIA-535-BAAC mechanical 机械和and 性能需求performance requirements
? Qualified to 资格EIA-717
? Moisture sensitivity level 水分敏感性水平1

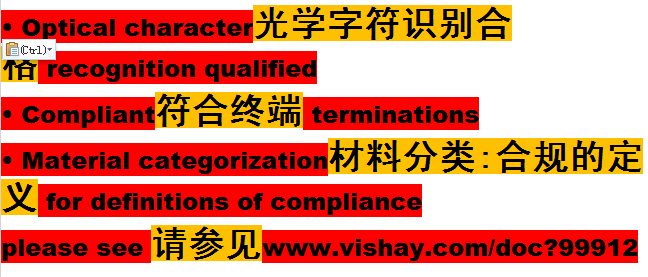

? Optical character光学字符识别合格 recognition qualified
? Compliant符合终端 terminations
? Material categorization材料分类:合规的定义 for definitions of compliance
please see 请参见www.vishay.com/doc?99912

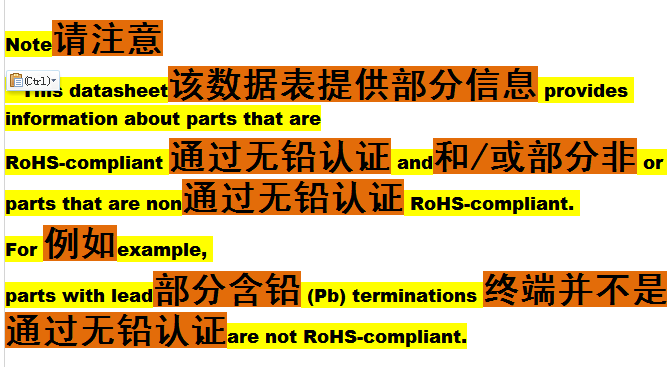

Note请注意
* This datasheet该数据表提供部分信息 provides information about parts that are
RoHS-compliant 通过无铅认证 and和/或部分非 or parts that are non通过无铅认证 RoHS-compliant.
For 例如example,
parts with lead部分含铅 (Pb) terminations 终端并不是通过无铅认证are not RoHS-compliant.

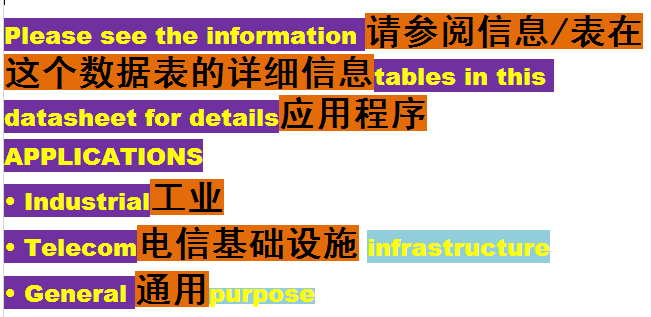

Please see the information 请参阅信息/表在这个数据表的详细信息tables in this datasheet for details应用程序
APPLICATIONS
? Industrial工业
? Telecom电信基础设施 infrastructure
? General 通用purpose
